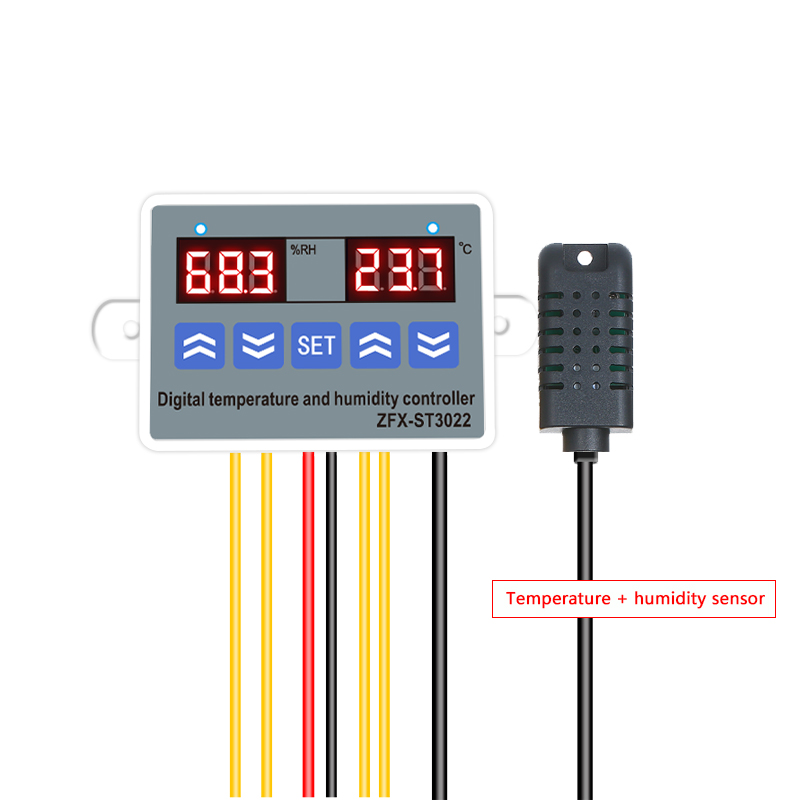

12V dual display dual temperature adjustable temperature regulator digital switch temperature and humidity controller ZFX-ST3022

Overview:

contact

Product introduction
Technical parameter
Product specification

item	value
Warranty	3 months
Customized support	OEM
Place of Origin	China
	Guangdong
Brand Name	ZFX
Model Number	ZFX-ST3022
Model	Temperature + humidity
Input voltage	AC110~220V, DC24V, DC12V
Measuring temperature range	-20℃-80℃
Measuring humidity range	1%RH-99%RH
Accuracy	±0.1°/1%RH
Relay output contact capacity	10A
Shell material	PC + ABS fireproof
Sensor length	1.5m
total measurement	7534.585mm
Installation hole distance	78.5mm

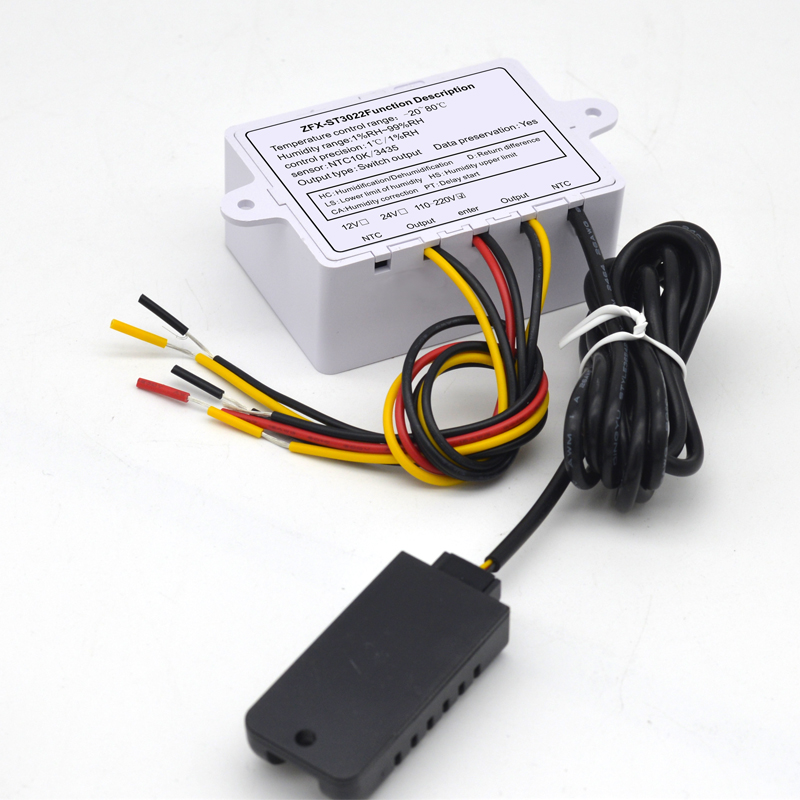

Panel description

Control humidity setting: Press the Set key once, after the humidity display flashes, press and hold for 3 seconds to enter the setting menu, and the code HC is displayed. Press the △ key or ▽ key to select the code of the HC-CP-PU-CA-HP parameter cyclically. If you need to enter a certain code, press the Set key, press the △ key or ▽ key to change the required value for 5 seconds and then exit automatically. Press the Set key twice and the temperature display flashes and then long press Set for 3 seconds to enter the setting menu, and the code HC is displayed. Press the △ key or ▽ key to select the code of the HC-CP-PU-CA-HP parameter cyclically. If you need to enter a certain code, press the Set key, press the △ key or ▽ key to change the required value for 5 seconds and then exit automatically.

Humidity parameter code

Code	Code description	Setting range	Factory value	Unit
HC	Humidification/Dehumidification	H/C	c
D	Humidity difference	1-30	5	%RH
LS	Lower temperature limit	1	5	%RH
HS	Upper temperature limit	99	95	%RH
CA	Temperature calibration	-10~+10	0	%RH
PT	Delay start	0~10	1	Minutes

Temperature parameter code

Code	Code description	Setting range	Unit
HC	Cooling/heating	H/C
D	Back difference	1-30	℃
LS	Ultra low temperature alarm	-20	℃
HS	Ultra high temperature alarm	80	℃
CA	Temperature calibration	-10-10	℃
PT	Delay start	0-10	Minutes
