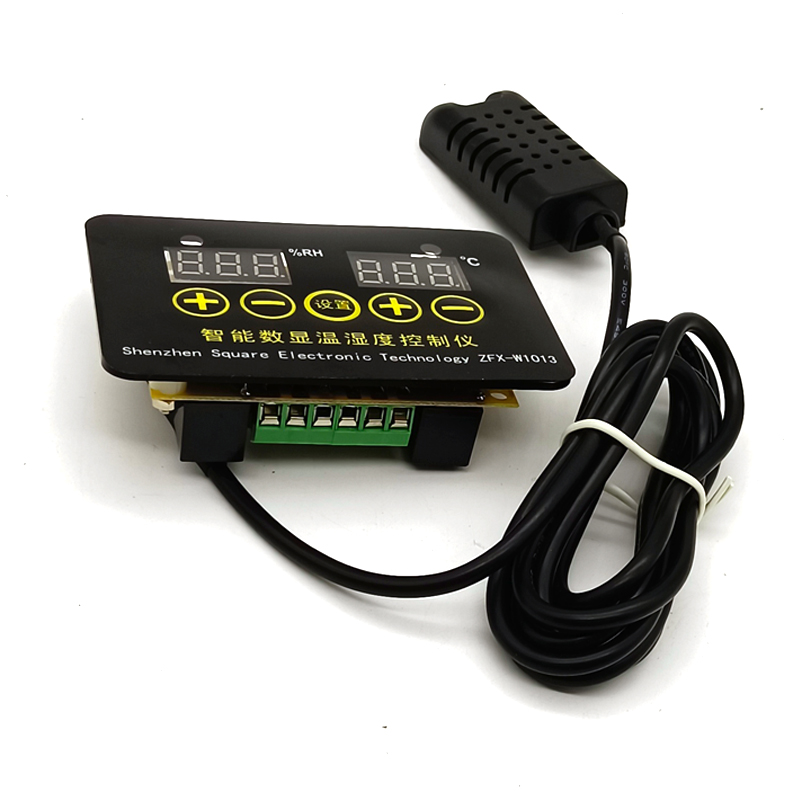

ZFX-W1013 intelligent temperature and humidity controller thermostat intelligent humidification and dehumidification 110V-AC220V

Overview:

Product introduction
Technical parameter
Product specification

item	value
Warranty	3 months
Customized support	OEM
Place of Origin	China
	Guangdong
Brand Name	ZFX
Model Number	ZFX-W1013
Model	Temperature + humidity
Input voltage	AC110~220V, DC24V, DC12V DC48V
Measuring temperature range	-20℃-80℃
Measuring humidity range	1%RH-99%RH
Accuracy	±0.1°/1%RH
Relay output contact capacity	10A
Shell material	PC + ABS fireproof
Sensor length	1.5m
total measurement	90*60mm
Hole Size	70*50mm

Panel description

Control humidity setting: Press the Set key once, after the humidity display flashes, press and hold for 3 seconds to enter the setting menu, and the code HC is displayed. Press the △ key or ▽ key to select the code of the HC-CP-PU-CA-HP parameter cyclically. If you need to enter a certain code, press the Set key, press the △ key or ▽ key to change the required value for 5 seconds and then exit automatically. Press the Set key twice and the temperature display flashes and then long press Set for 3 seconds to enter the setting menu, and the code HC is displayed. Press the △ key or ▽ key to select the code of the HC-CP-PU-CA-HP parameter cyclically. If you need to enter a certain code, press the Set key, press the △ key or ▽ key to change the required value for 5 seconds and then exit automatically.

Humidity parameter code

Code	Code description	Setting range	Factory value	Unit
HC	Humidification/Dehumidification	H/C	c
D	Humidity difference	1-30	5	%RH
LS	Lower temperature limit	1	5	%RH
HS	Upper temperature limit	99	95	%RH
CA	Temperature calibration	-10~+10	0	%RH
PT	Delay start	0~10	1	Minutes

Temperature parameter code

Code	Code description	Setting range	Unit
HC	Cooling/heating	H/C
D	Back difference	1-30	℃
LS	Ultra low temperature alarm	-20	℃
HS	Ultra high temperature alarm	80	℃
CA	Temperature calibration	-10-10	℃
PT	Delay start	0-10	Minutes

Scope of application

This product uses a single chip microcomputer control system and a high-precision temperature and humidity probe, an integrated temperature and humidity controller, two modes of temperature and humidity. Set the corresponding parameters and modes before running.
It can be adjusted freely and is suitable for refrigerators, freezers, display cabinets, greenhouses, greenhouses, medical equipment, pet rooms, EPS incubators, sauna rooms, PC rooms, civilian equipment, and can be directly embedded on panels such as industrial control equipment. It is easy to install and use. .....

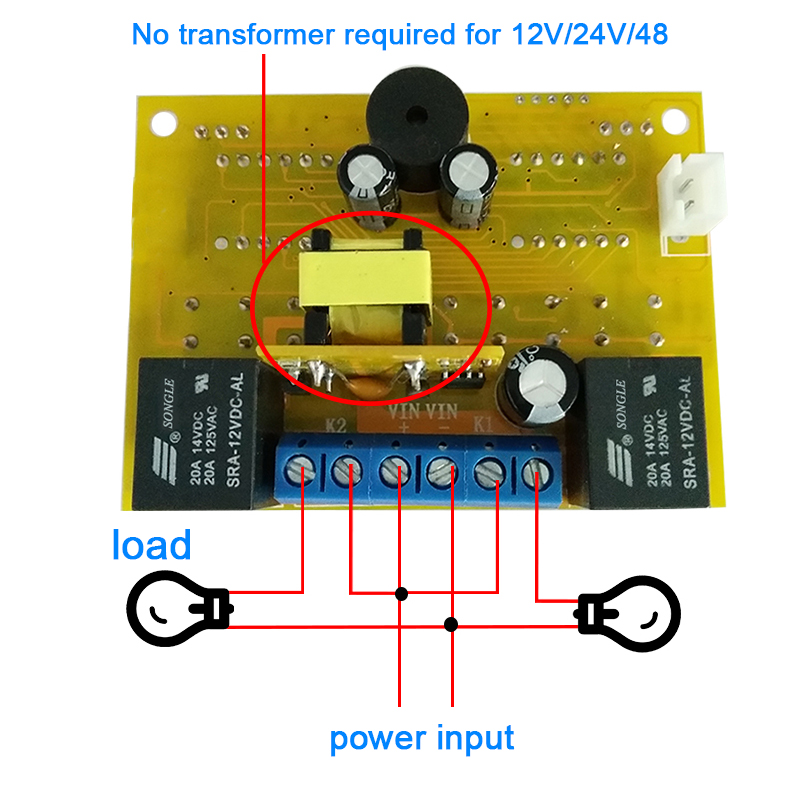

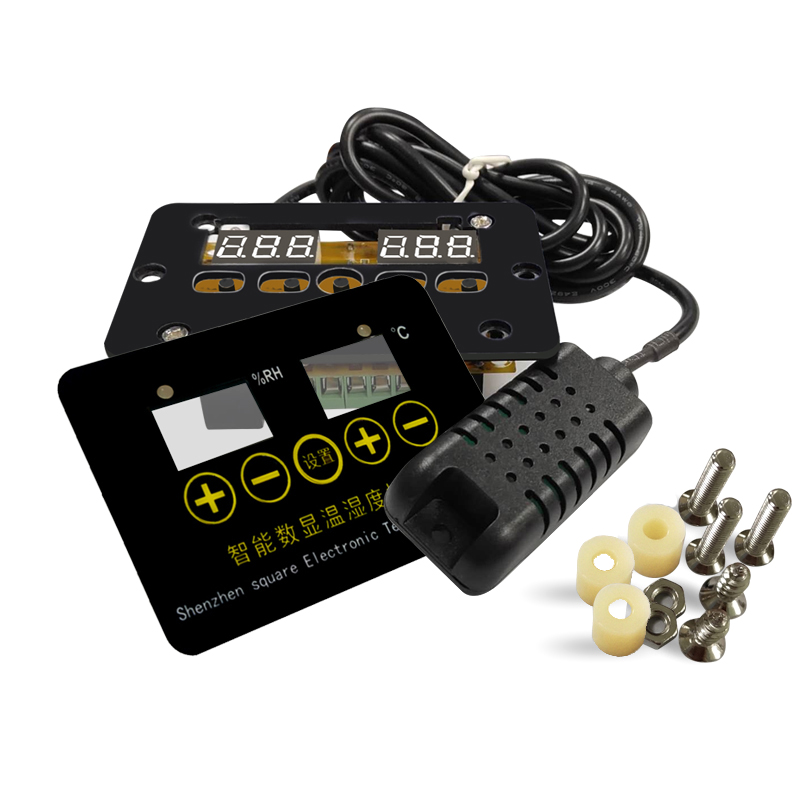

Installation Notes

application
