STC-3028 AC110-220V Display Dual Adjustable Temperature Regulator Digital Switch Temperature and Humidity Controller

Overview:

Product introduction
Technical parameter
Product specification

item	value
Warranty	3 months
Customized support	OEM
Place of Origin	China
	Guangdong
Brand Name	ZFX
Model Number	STC-3028
Model	STC-3028
Input voltage	AC110~220V, DC24V, DC12V
Measuring temperature range	0°~+110°
Measuring humidity range	00%RH~+100%RH
Accuracy	±0.1°/1%RH
Relay output contact capacity	10A
Shell material	PC + ABS fireproof
Sensor length	1m
total measurement	7534.585mm
Installation size	70*28mm

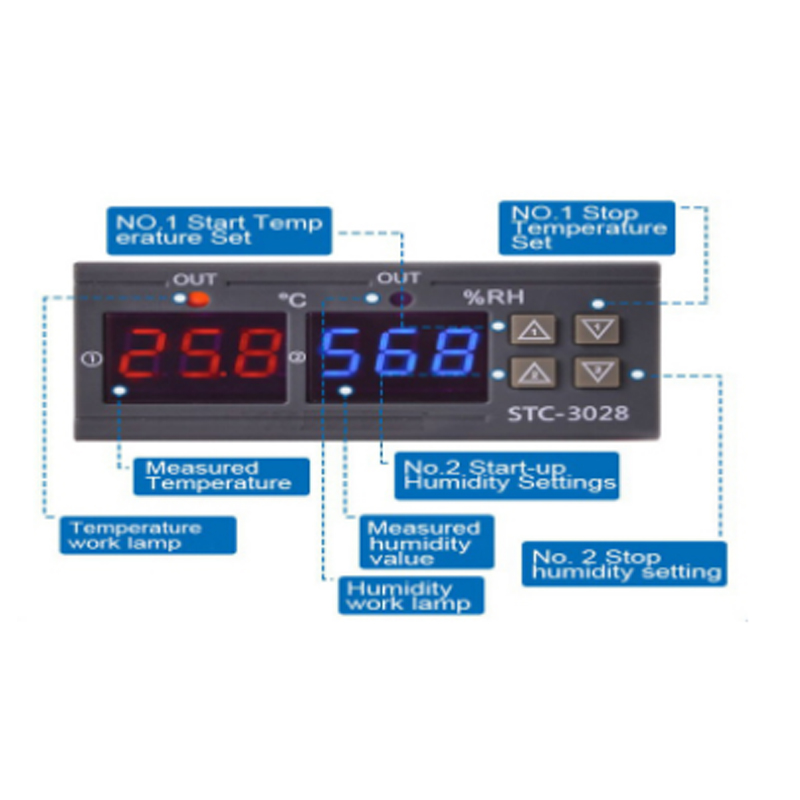

Panel description

Feature:Be able to control temperature and humidity at the same time. Be able to connect with humidifier and dehumidifier equipment at the same time. Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time. Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control. Supporting Temp and Humidity Calibration Dual Display Window,Be able to display measured temperature/humidity and set temp/humidity at the same time

Set startup temperature(humidity):Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
Set the stop temperature(humidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
temperature ( hunidity) correction:
Press "up"  and "down button at the same time.

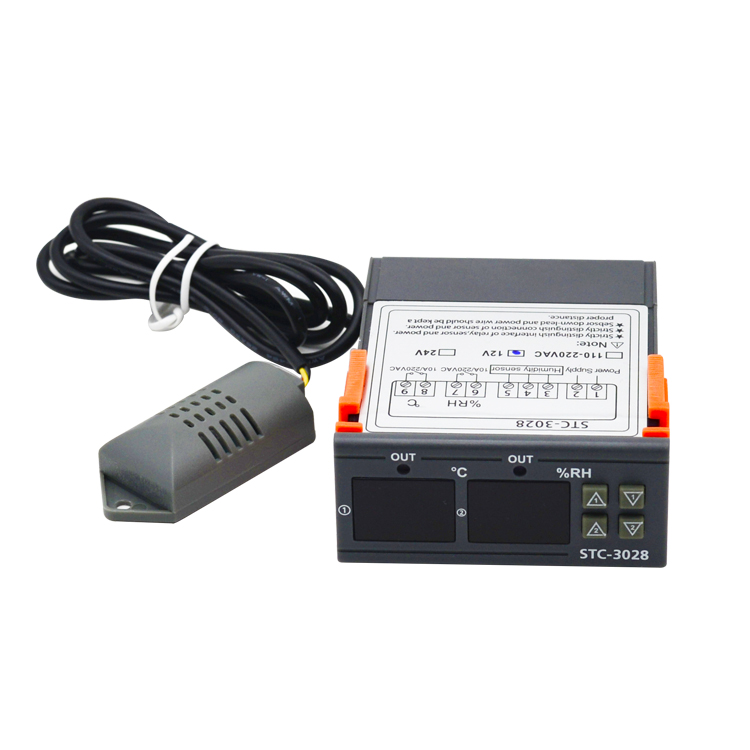

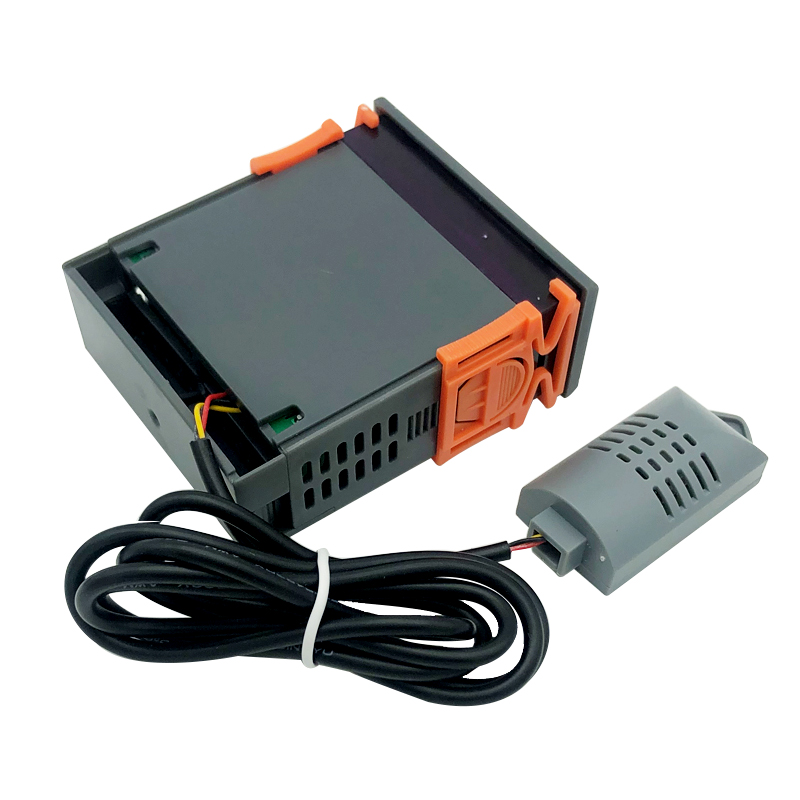

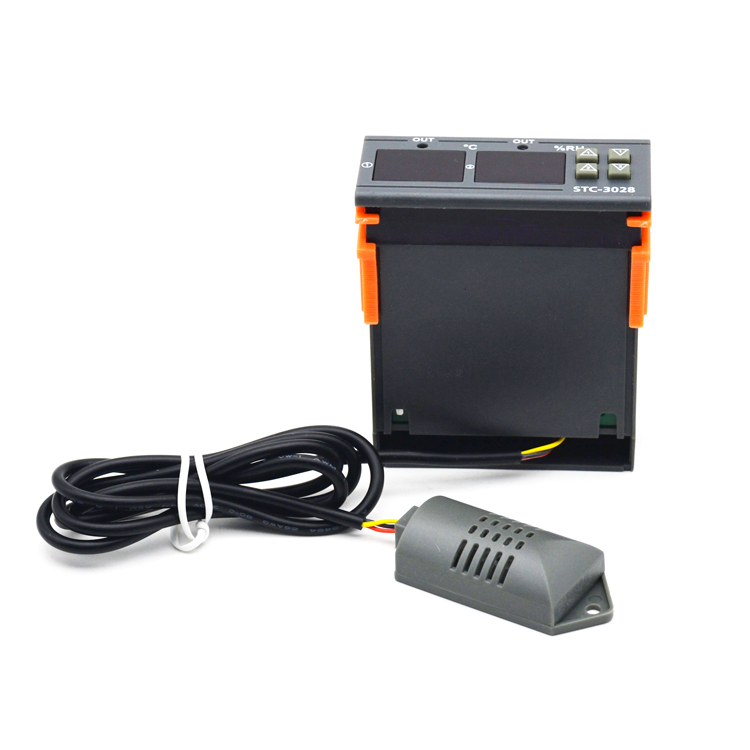

Products Show

application
