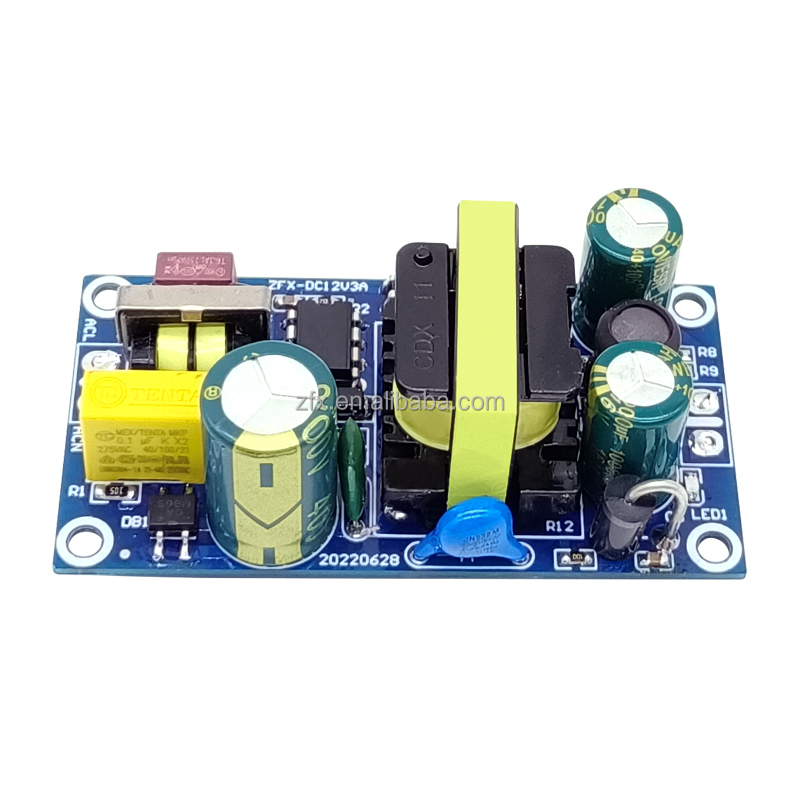

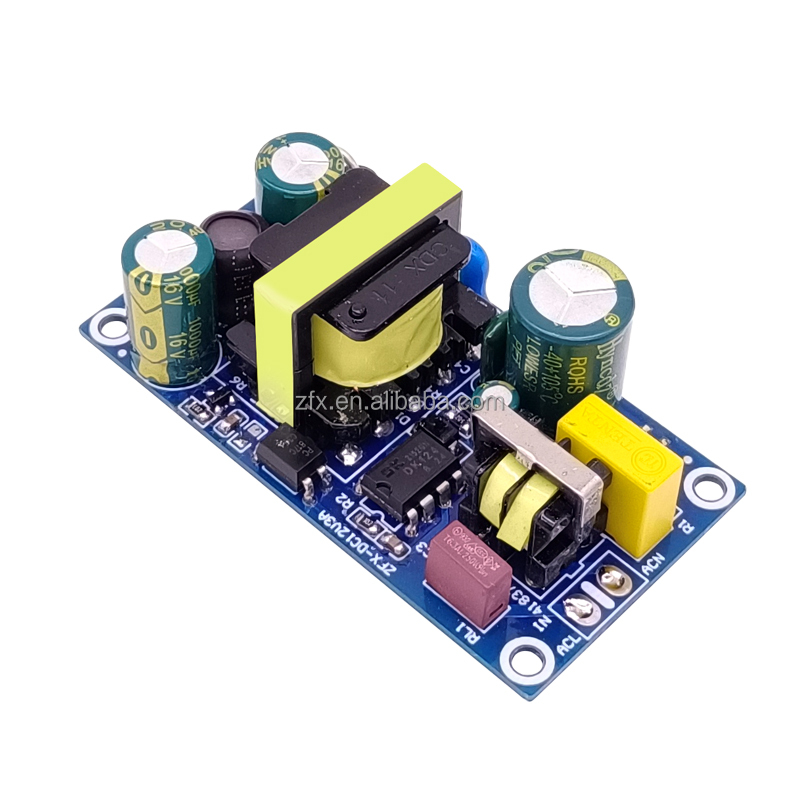

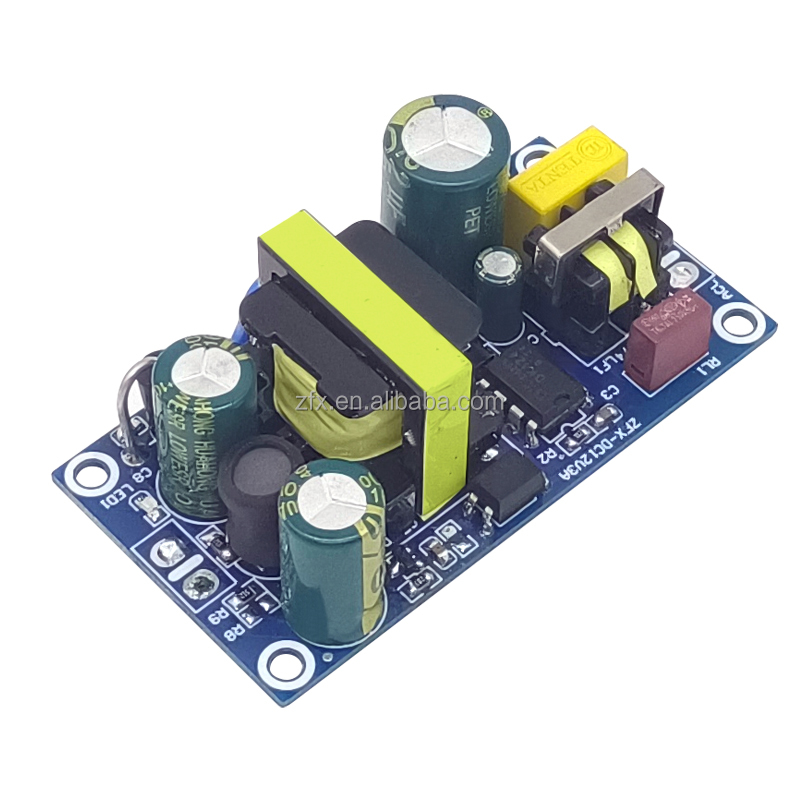

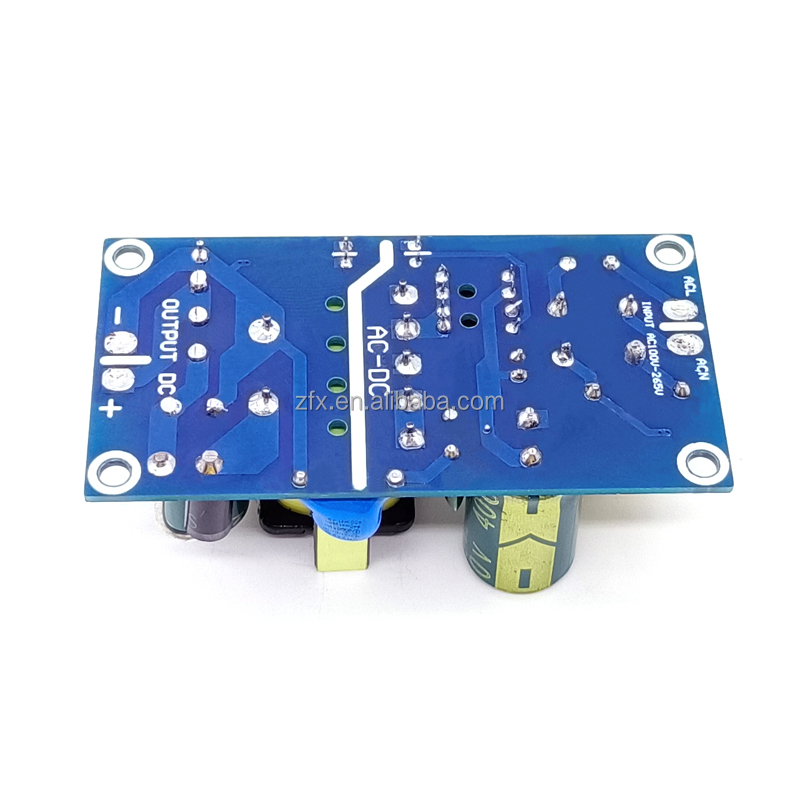

12V3A/24V1A switching power supply board module bare board 24W 12W AC-DC isolated power supply board

ZFX-DC12V3A
Product name: Switching power supply board
Power protection: overload, short circuit, over temperature protection.
Power input: AC100-265V
Frequency input: 50HZ~60HZ
Output voltage: DC12V
Output current: rated 2.5A (peak 3A)
Output power: 30W

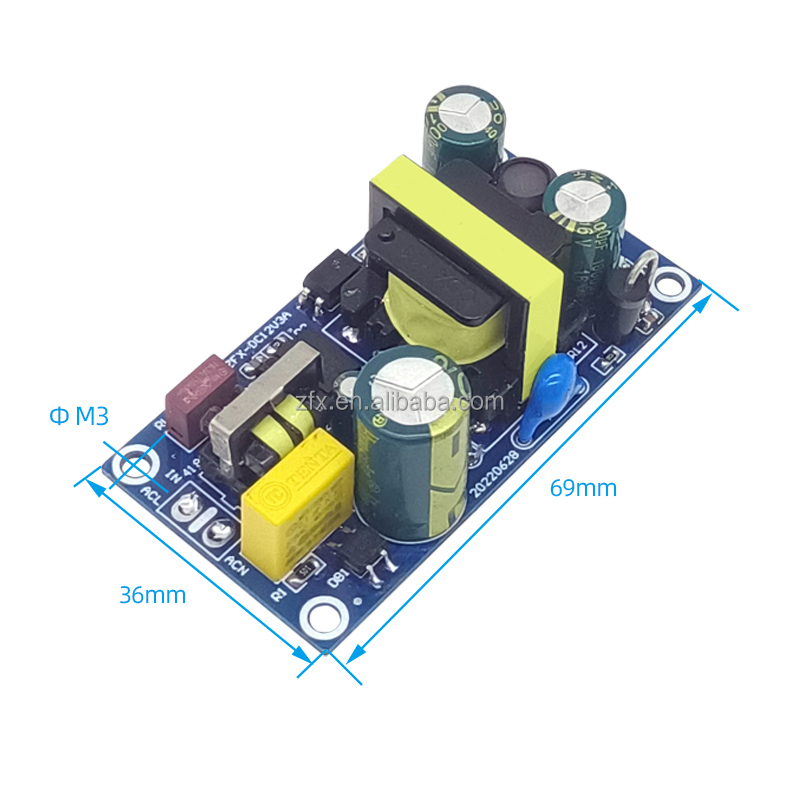

Module size: 69*36*23mm


1 The product is easy to install, and the input and output can be used by welding 5.08 terminals or pins
2.  The board uses M3 fixing holes, which can be fixed with screws to prevent movement or vibration.
3.  Through the input voltage AC110-265V, strong versatility
4.  High efficiency, strong design density, small size
5.  High isolation between input and output, low output ripple
6.  Overload, short circuit, over temperature protection
