Manufacturers Supply High Quality AC-DC ZFX-M301 Module Various Specifications Of Power Modules

Overview:

contact

Product introduction
Technical parameter
Product specification

Product name	AC-DC power supply module
Product model	ZFX-M301
Input range	AC/DC100-240V (yellow wire)
Output voltage	DC12V/300mA (red wire)
Appearance size	402823mm (without mounting ears)
Installation distance	47mm
Applicable scope	used for power supply of thermostat main board (220v to 12v)
Weight	21.3g

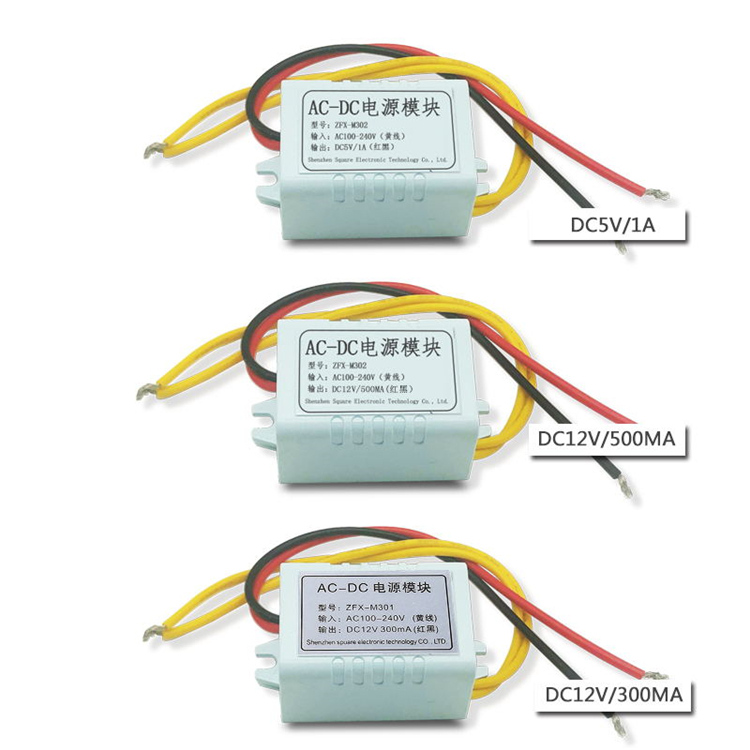

Specification options	12V/300mA, 12V/550mA, 5V/1A (contact us)
