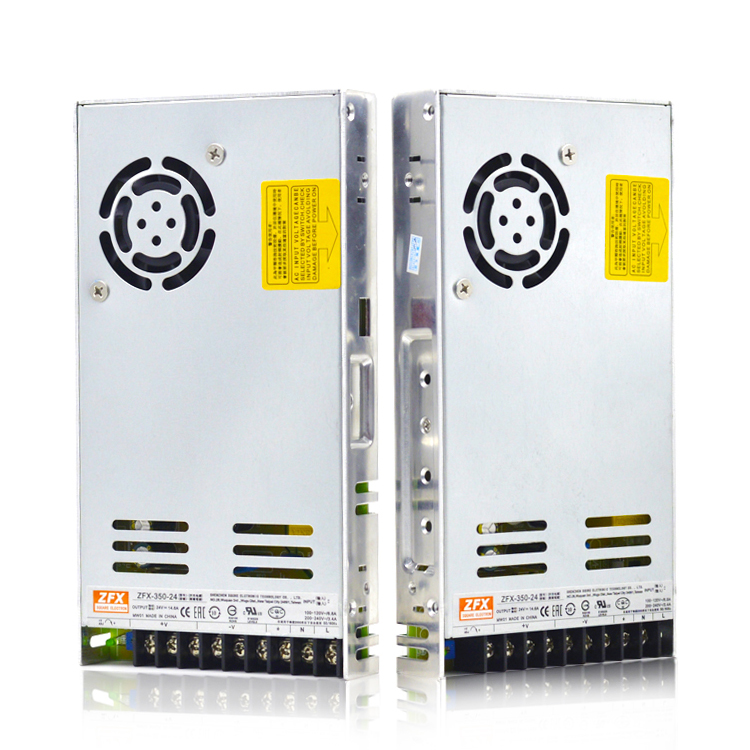

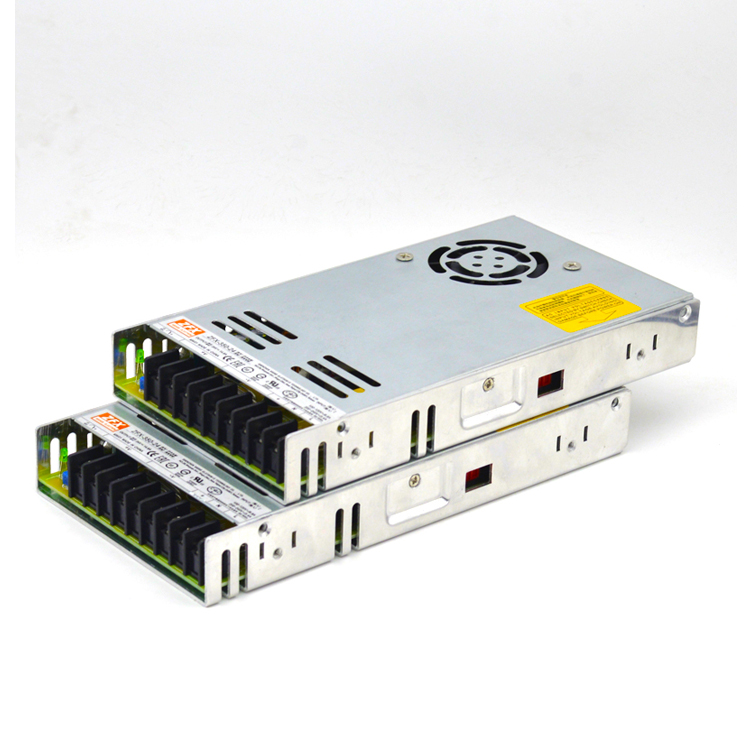

220V to 24V AC/DC conversion module wholesale AC-DC 350W switching power supply controller full power power switch ZFX-350-24

Overview:

Product introduction
Technical parameter
Product specification

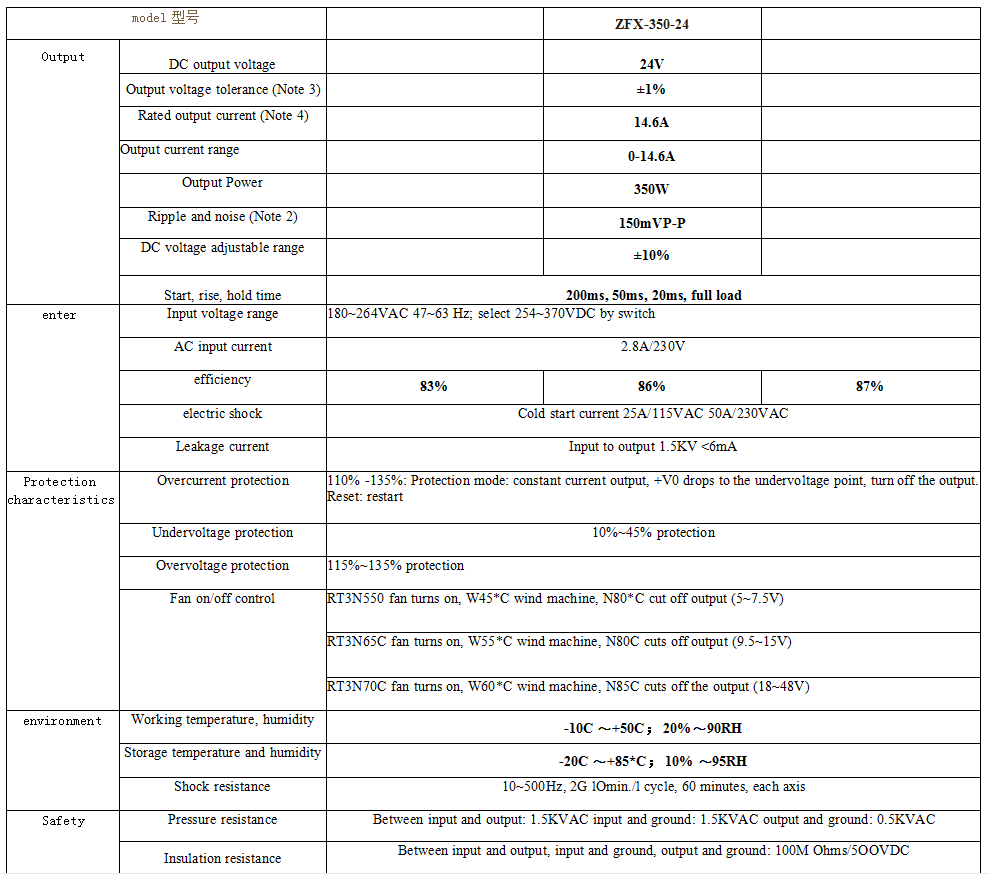

item	value
Place of Origin	China
	Guangdong
Brand Name	ZFX
Model Number	ZFX-350-24
Output Power	350W
Output Type	Single
Input Voltage	230V
Output Voltage	24V
Output Frequency	47~63(HZ)(HZ)
Output Current	14.6(A)
DC output voltage	24V
Output voltage tolerance (Note 3)	±1%
Rated output current (Note 4)	14.6A
Output current range	0-14.6A
Output Power	350W
Ripple and noise (Note 2)	150mVP-P
DC voltage adjustable range	±10%
Start, rise, hold time	200ms, 50ms, 20ms, full load
AC input current	230V
Single package size	21511530mm

Four kinds of protection, rest assured and safeShort circuit protection Overload protection Overvoltage protection Overheat protection

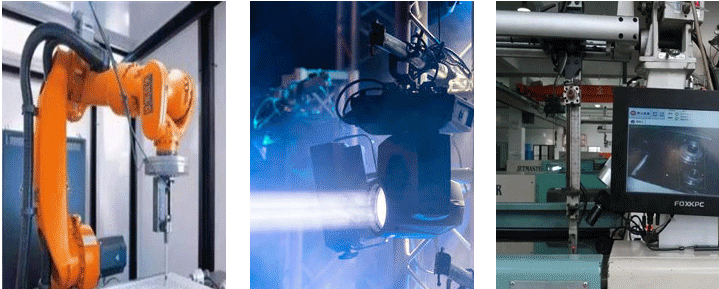

Scope of application

1. LED equipment 2. Monitoring equipment 3. Medical equipment 4. Mechanical equipment 5. Lighting equipment 6. Industrial control equipment
