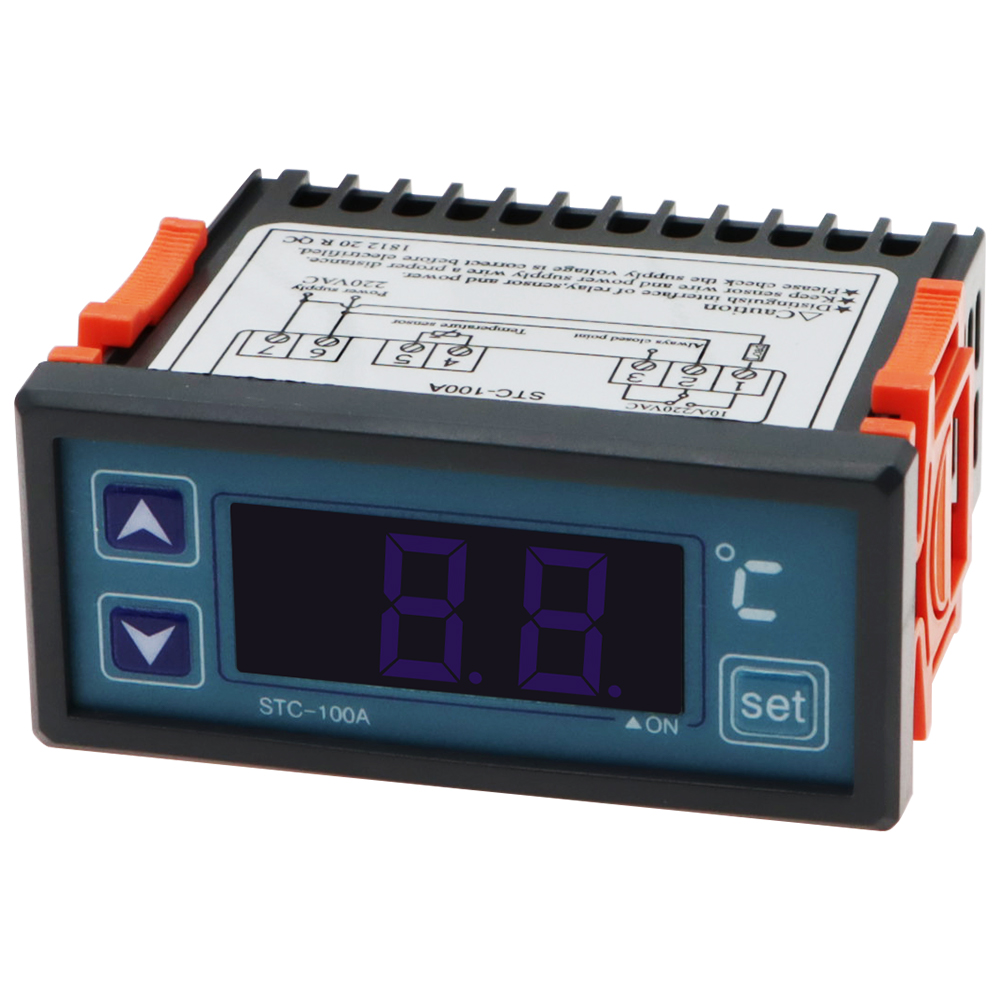

STC-100A Temperature Controller Cool Heat Refrigerator Thermostat AC 220V Regulator Thermoregulator Thermocouple 2M NTC sensor

Overview:

contact

Product introduction
Technical parameter

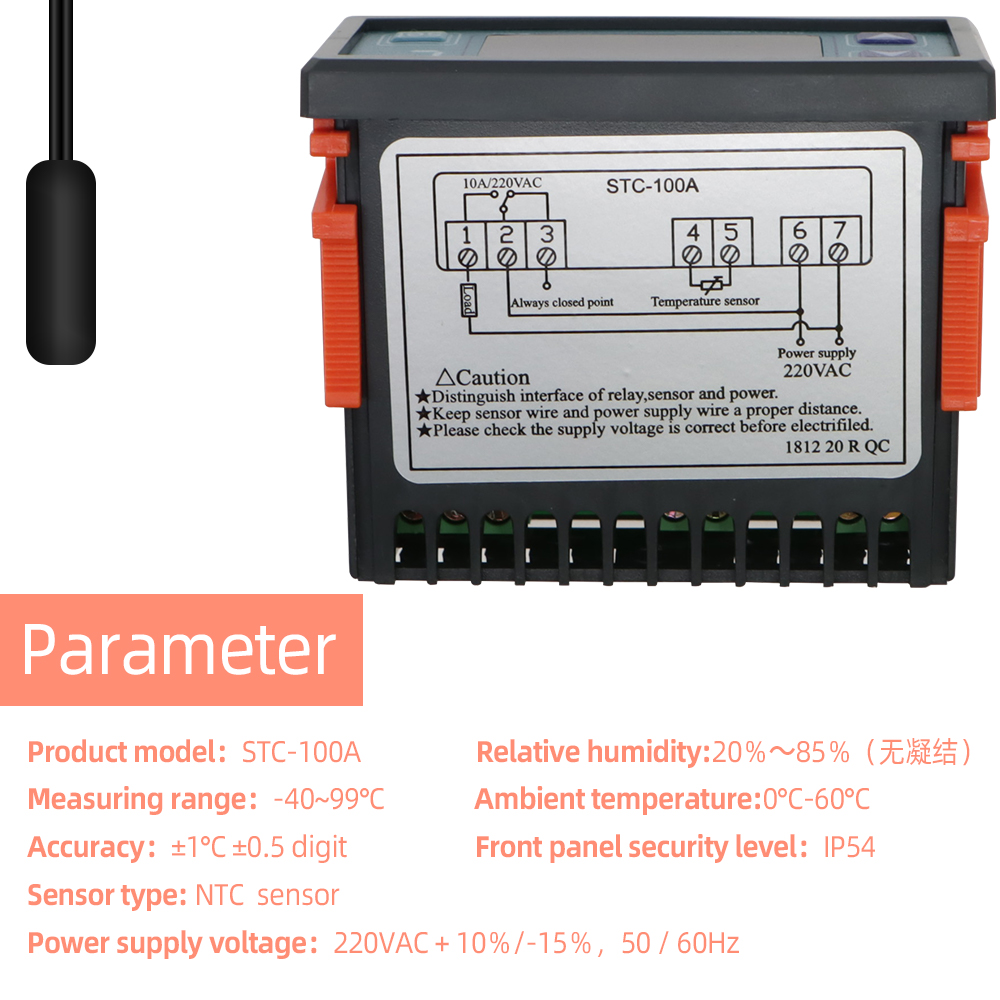

Product specification

Model:	STC-100A
Color:	Gray
Relay capacity:	10A(0.5HP)/220VAC
Temperature measure range:	-40~99°C
Temperature controlling range:	-40~99°C
Resolution:	1°C
Accuracy:	±1 °C±0.5digit
Ambient requirements:	temperature: 0-60°C humidity: 20%-85%(No condensate)
Consumption:	≤3W
Sensor lenth:	2M(include the probe)
Input:	1 NTC sensor
Delay time when sensor error:	1 min
Safe level of the front panel:	IP54
Storage temperature:	-30°C - 75°C

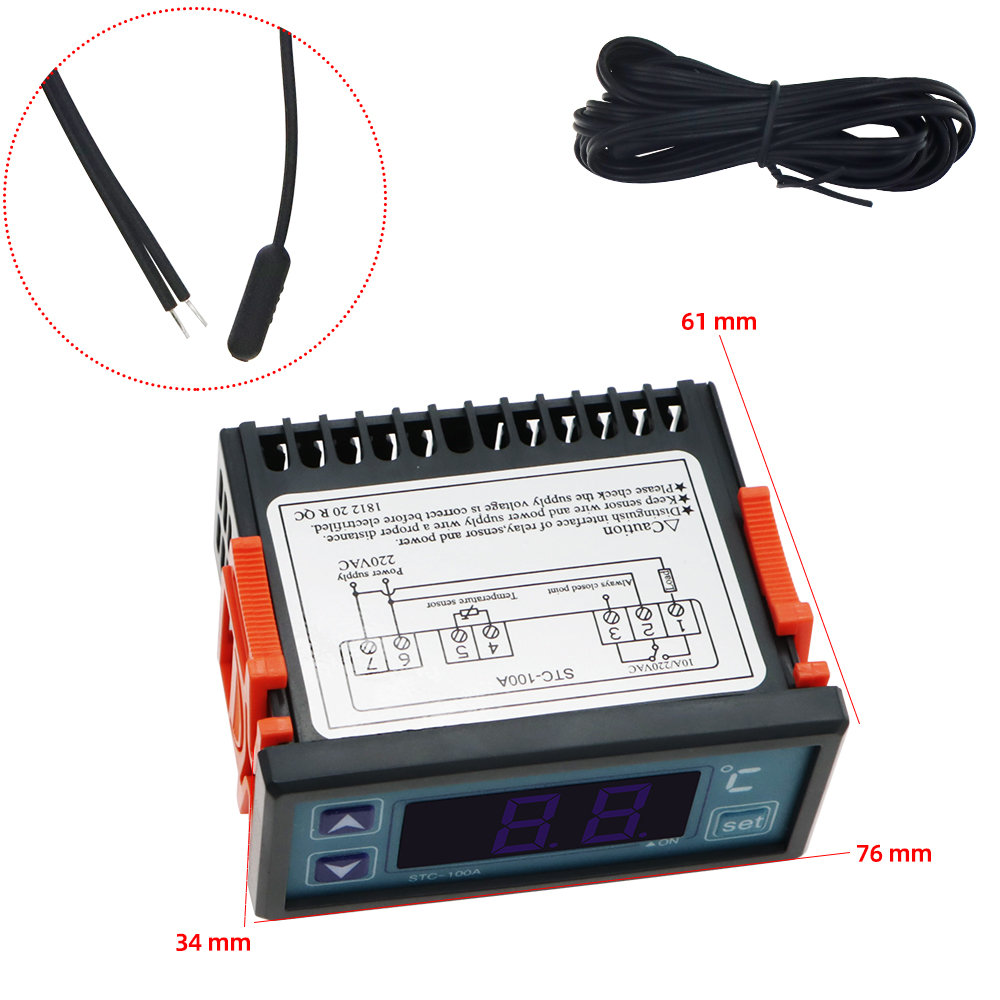

Front Panel Size:	77(L)x34.5(W)mm/3x1.35in
Installing hole Size:	71(L)x29(W)mm
Item size:	77(L)x34.5(W)x62mm(D)/3x1.35x2.42in
