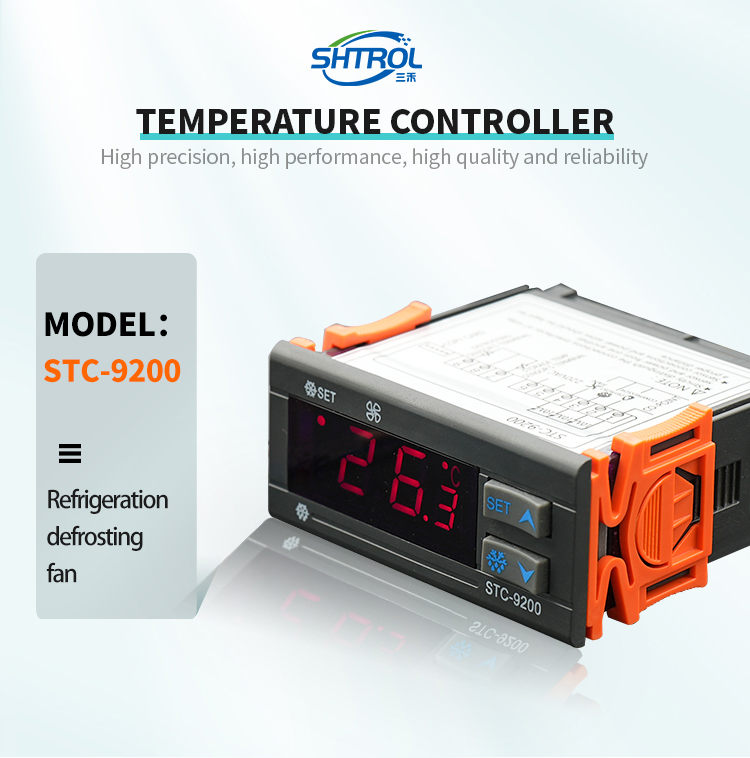

Digital microcomputer temperature controller STC-9200

STC-9200

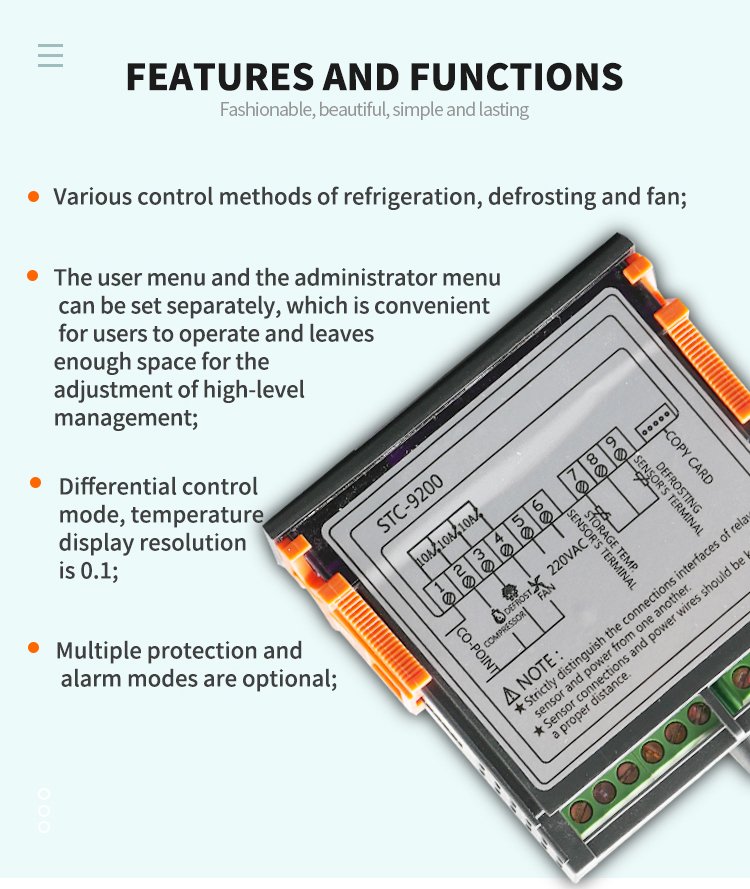

Features and functions:
1.Multi-control mode among refrigeration,defrost and fan;
2.User menu and administrator menu can be set separately.Not only converient for user operation,but also left enough space for the
adjustment of high-level management;
3.Differential control mode,and the resolution of temperature display is 0.1;
4.Multi-protection and alarm mode optional;

Specification:
1.Product size:75*34.5*85mm
2.Installation size:71*29mm

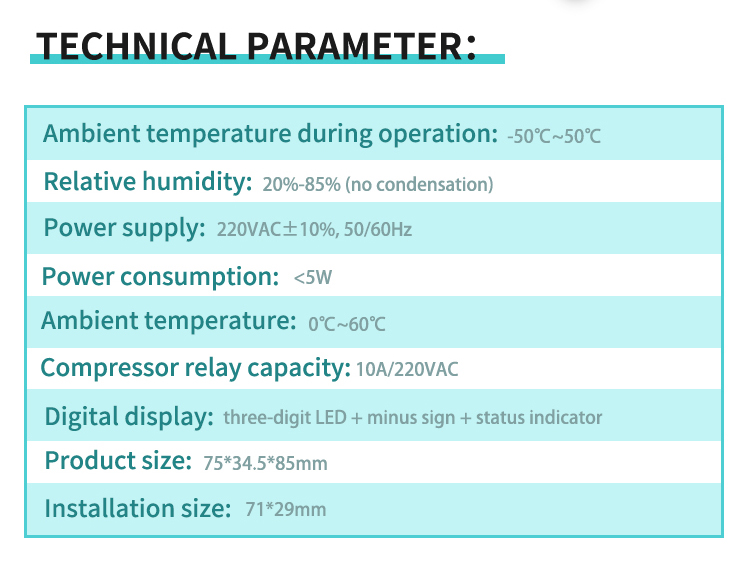

Technical parameters:
1.Temperature measuring range:-50℃~50℃
2.Power supply:220VAC,50Hz
3.Power consumption:<5W
4.Ambient temperature:0℃~60℃
5.Relative humidity:20%-85%(No condensate)
6.Accuracy:±1℃
7.Relay capacity of compressor:8A/220VAC
8.Relay capacity of alarm and defrost:8A/220VAC
9.Digital display:Three-digit LED+Minus digit+Status indicator light
