One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch

Overview:
contact
  • Product introduction
  • Technical parameter
  • Product specification

  • Product parameters: 1: Working voltage: 6--30V support micro USB 5.0V power supply 2: Trigger signal source: high-level trigger (3.0V-24V) signal ground and system ground are not in common to improve the anti-interference ability of the system (you can also short-circuit the common ground by yourself) 3: Output capability: can control equipment within DC 30v 5A or AC 220v 5A 4: Quiescent current: 20mA Working current: 50mA 5: Service life: more than 100,000 times; working temperature: -40-85℃; size: 6.2*3.8*1.7cm 6: With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters after power off memory.


    Module Highlights: 1. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use; 2. The interface is clear and simple, powerful and easy to understand, almost meeting all your needs; 3. One-key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn; 4. Added sleep mode. After enabling, if there is no operation within 5 minutes, the display will be automatically turned off; any key will wake up; 5. Different OP, CL, LOP parameters can be set, these parameters are mutually independent and saved separately; 6. All setting parameters are automatically saved after power off.

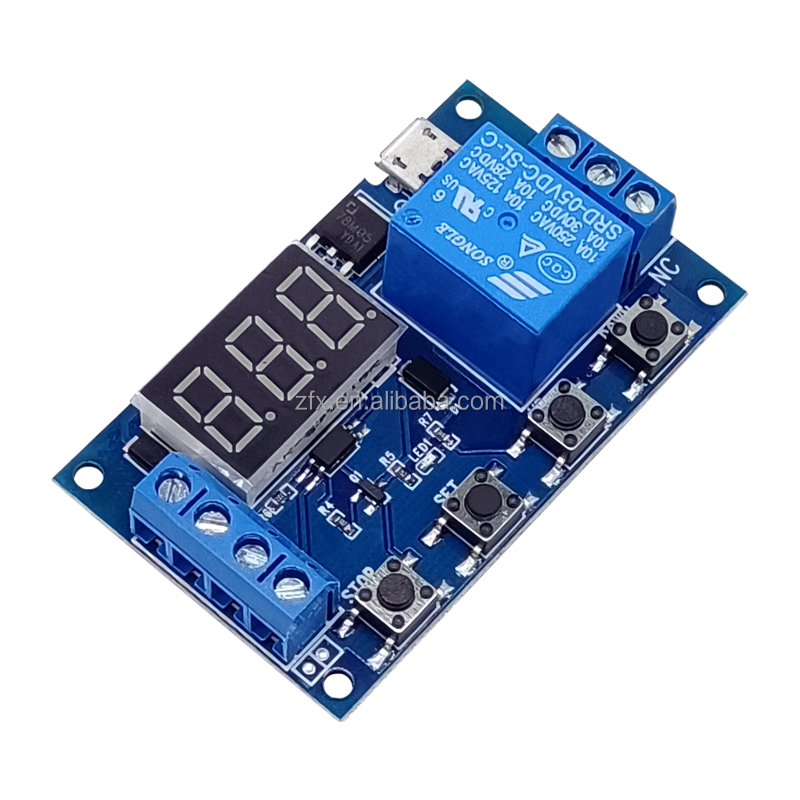

    One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch(图1)

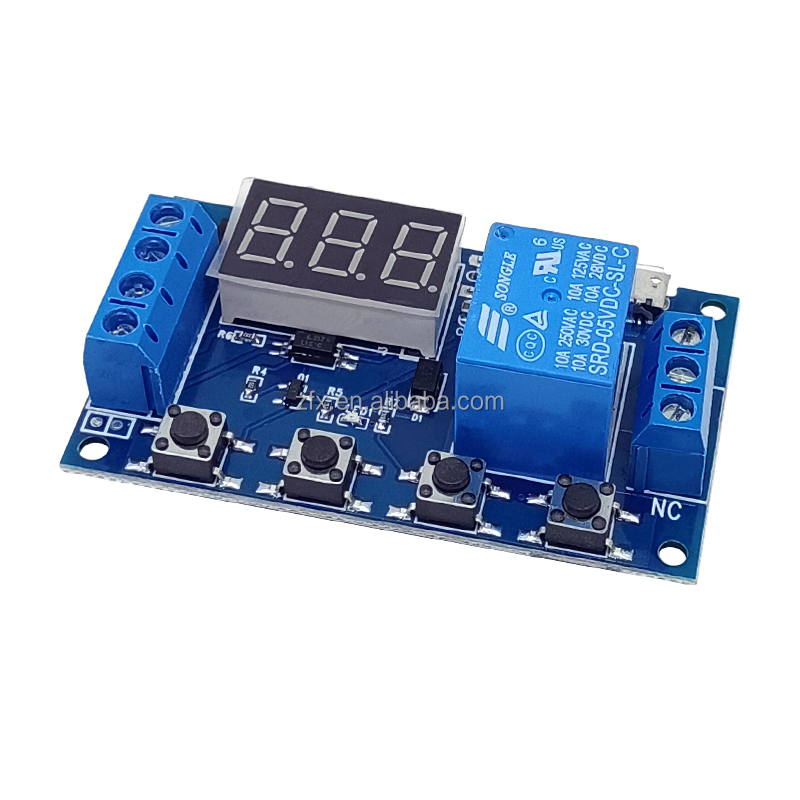

    One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch(图2)

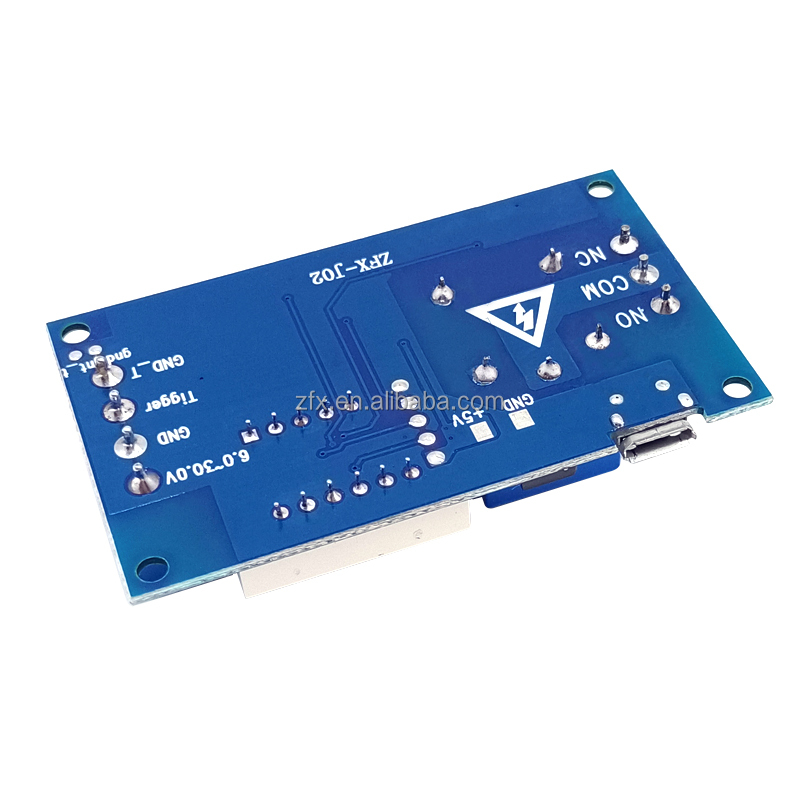

    One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch(图3)

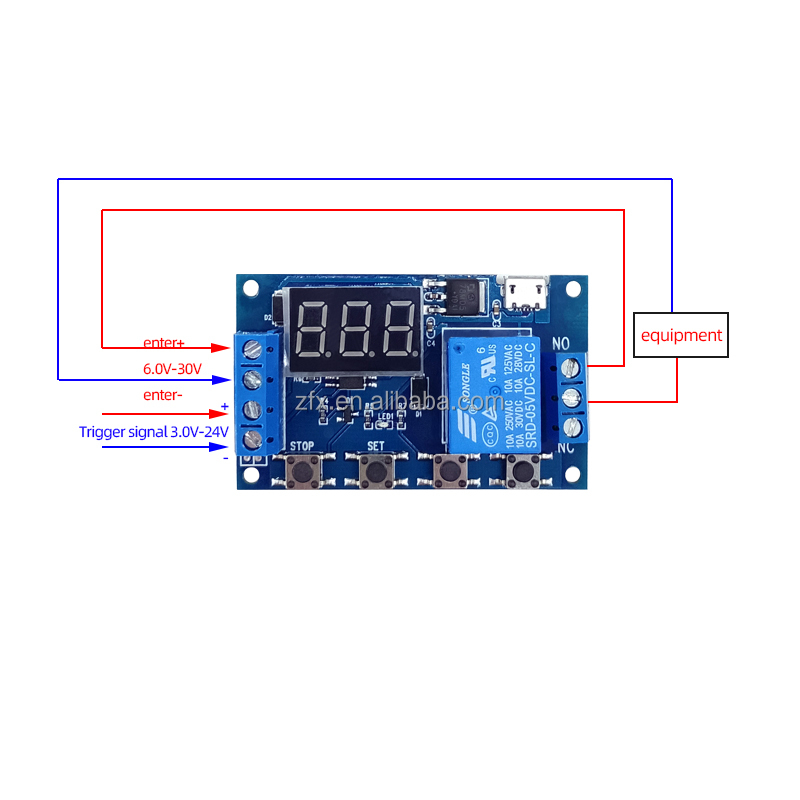

    One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch(图4)

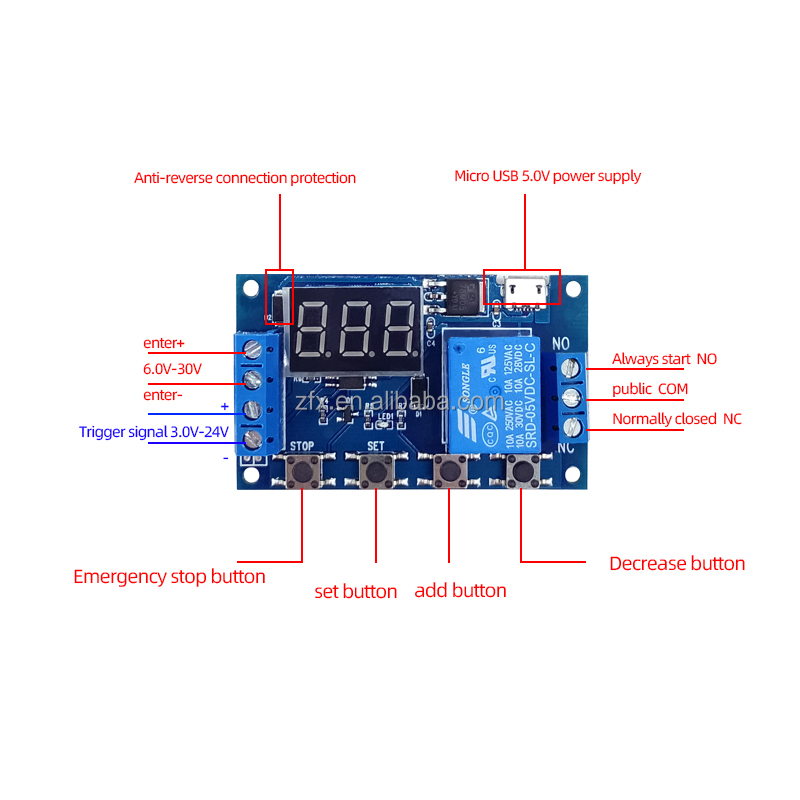

    One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch(图5)
