Zfx-st3008 Multifunctional Time Temperature Control Switch Intelligent Digital Display Thermostatdc12-60v 3 Months 765531mm

Overview:

Product introduction
Technical parameter
Product specification

This product adopts single-chip microcomputer control and high-precision temperature control probe, its temperature control performance and accuracy are obviously better than similar products, three display windows, humanized design, real-time display of start and stop values, intermittent work, timing switch, etc. Function, simple control panel, wide temperature control range, simple setting, ABS composite material, not easy to aging, according to the figure to open the hole, can be directly installed and used or embedded in the panel of industrial control equipment, convenient and fast, widely used in the field of incubation, equipment Boxes, air-conditioning systems, temperature control protection and other fields.

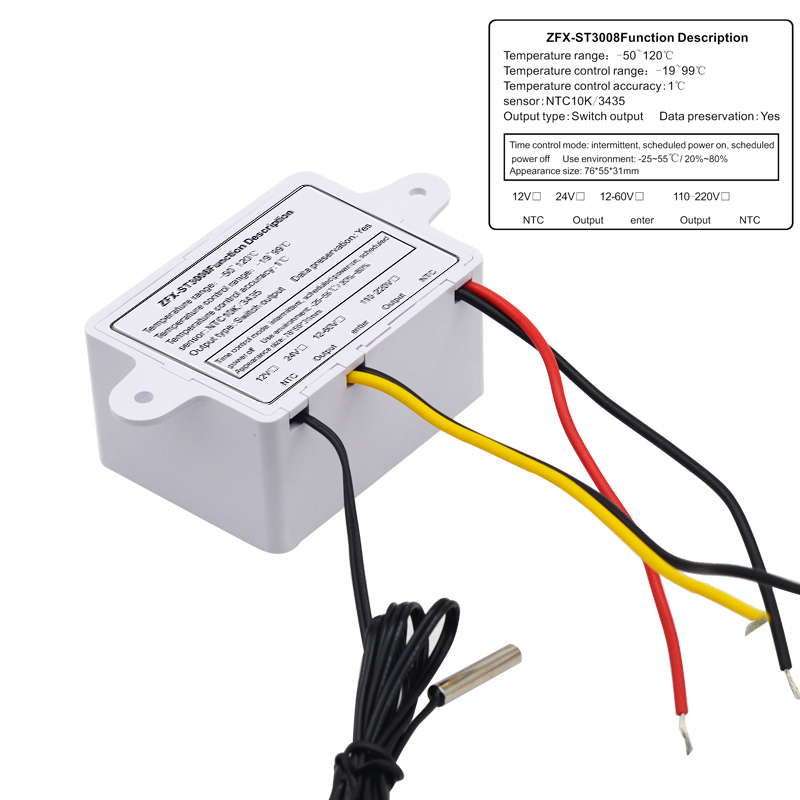

One: technical parameters Temperature control range: -19℃～99℃ Temperature measurement error: ±0.3℃ Sensor model: NTC (10K/3435) Control accuracy: 0.1℃ Working voltage: DC12V /DC24V/AC110V-220V (customer option)Relay output: 10AData storage: Yes Working temperature: 0℃～50℃ Storage temperature: -10℃～60℃ Instrument size: 76 (length) * 55mm (width) * 31mm (depth) Installation hole distance: 78mm Delivery probe length is 1 meter, probe size: φ4mm*20mm

Panel description

SET: Function switch In the power-on state, press and hold the SET button for 3 seconds to turn on and off the machine. If the power is off after the power is off, and the power is turned on again, it will still remain in the off state In the off state, press the SET button to turn on the device, and the power is off in the on state, and it will remain on when it is powered on again. During normal use, press the SET button to switch between the three modes of F-1 (intermittent mode), F-2 (timed off) and F-3 (timed on). (F1-F3) is an additional function used. It has nothing to do with the temperature control setting, you can not use it when you don’t need it)

Code
F-1	Intermittent work, the left side starts the minute setting, the left side stops the minute setting
F-2	Timed shutdown, hour on the left and minute on the right, up to 99 hours and 59 minutes can be set
F-3	Timing start-up hours on the left and minutes on the right can be set up to 99 hours and 59 minutes

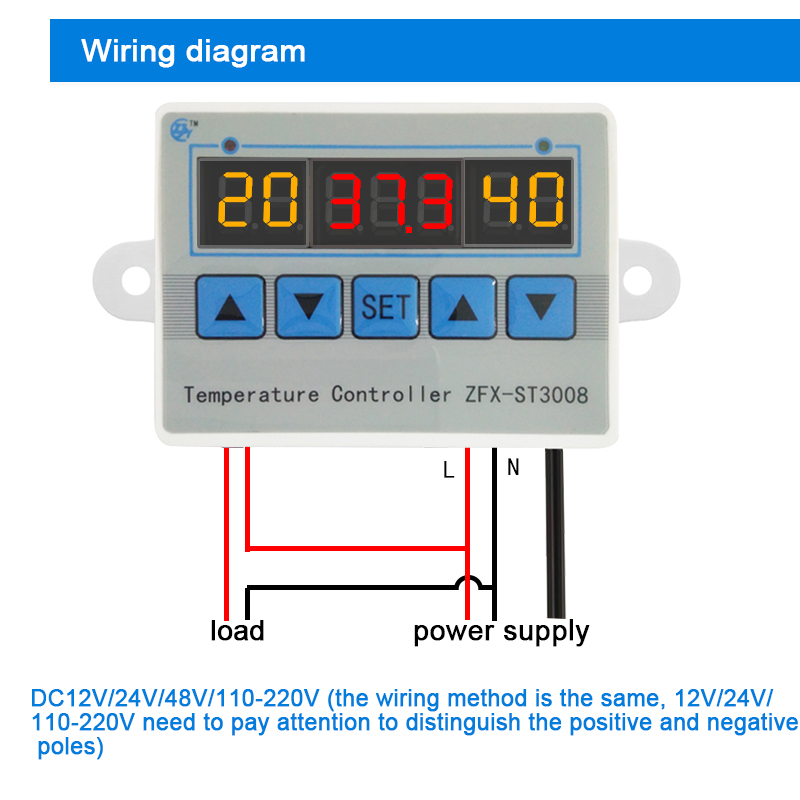

Product wiring

Scope of application

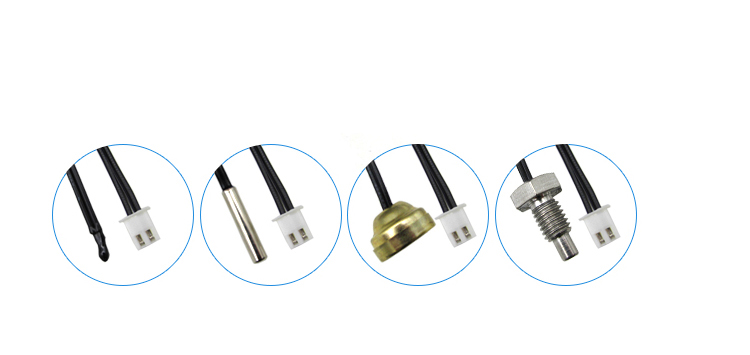

There are multiple specifications of sensors to choose from, choose suitable sensors according to different environments

Heating/cooling examples

Start temperature<stop temperature = heating mode

Control the water temperature at 45~60°C, start below 45°C, stop above 60°C

Set the temperature of the left display window to 45°C, and set the stop temperature of the right window to 60°C. The screen number flashes for three seconds and automatically saves and exits.

Start temperature> stop temperature = heating mode

For example, if you want the ventilation fan in the greenhouse to start heat dissipation above 35°C, and stop below 32°C
Set the start temperature on the left to 35°C and the stop temperature to 32°C

application
