ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller

Overview:
contact
  • Product introduction
  • Technical parameter
  • Product specification

  • Specification

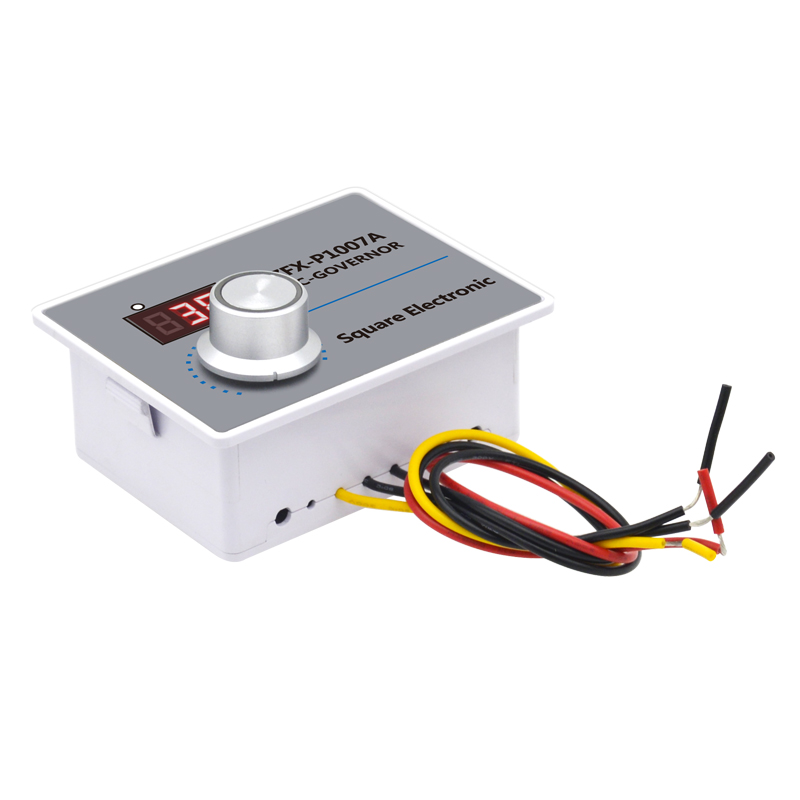

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图1)

    Press and hold the encoder and power on to set the minimum output, for example: output 20%, press and hold the encoder and power on, and the minimum value will be adjusted to the required minimum value. Press the encoder again to confirm and exit.

    item
    value
    Warranty
    3months-1year
    Certification
    NO
    Place of Origin
    China

    Guangdong
    Brand Name
    ZFX
    Model Number
    ZFX-P1007A
    Motor PWM speed controller
    ZFX-1007A
    Product size
    87*67*34MM
    VoltsTemperature control range
    0%-100%
    Temperature accuracy
    1%
    Default output
    50%
    Output type
    Direct output
    Save when power off
    No
    Control outputOutput voltage
    220v
    Rated power
    500w
    Weight
    129g
    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
    Product name: Digital display stepless speed regulator Product model: ZFX-P1007A Power supply voltage: AC220V Measuring range: 0%-100% Temperature control accuracy: 1% Output type: direct output Rated power: 500W Power failure protection: none Appearance size: 87*67*34MM Default output: 50% Weight: 129g
    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

    Packing & Delivery

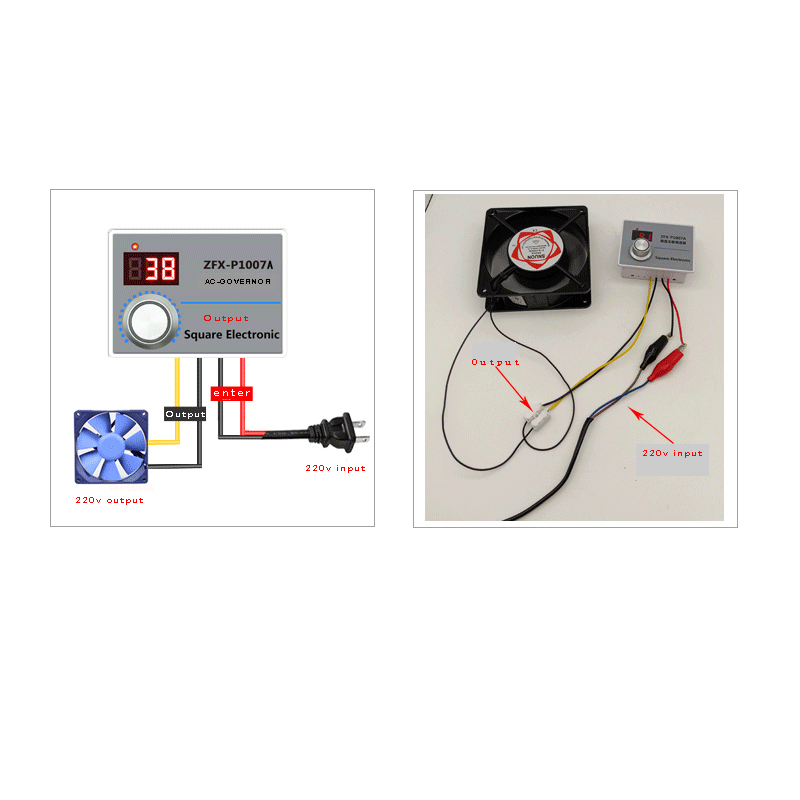

    The product wiring diagram is as follows

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图2)

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图3)

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图4)

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图5)

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图6)ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图7)

    ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图8)ZFX-P1007A AC digital display stepless speed controller, high power speed control switch, motor PWM speed controller(图9)
