DC 48V W3001 Digital Led Temperature Controller 10a Thermostat Control Switch Probe Xh-w3001 Xh 3 Months 60*45*31mm 10A Relay

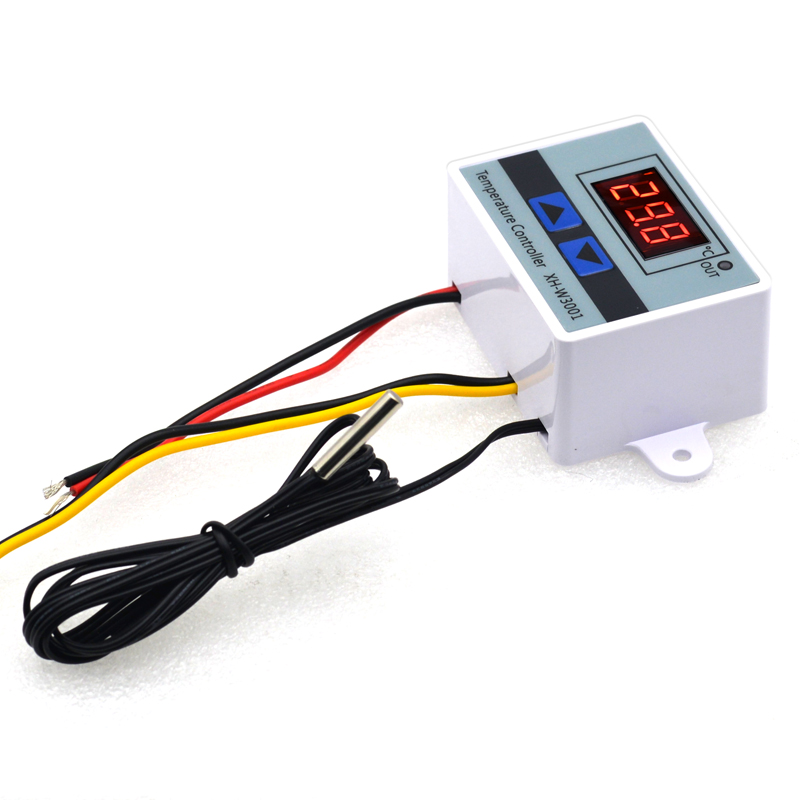

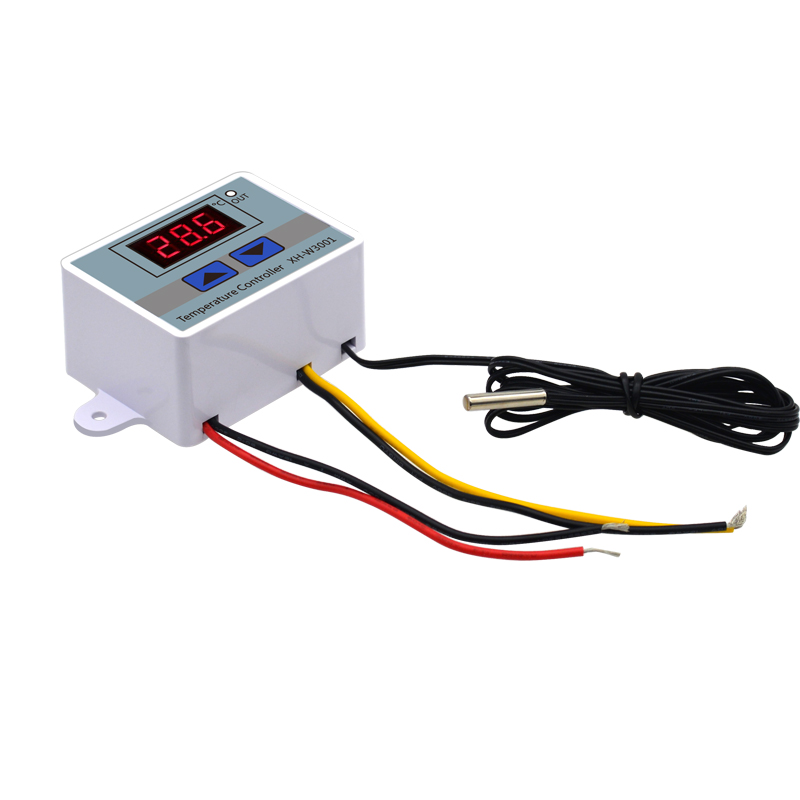

Temperature Controller

W3001 Microcomputer controller instruction
Product name:Microcomputertemperature controller
Power supply:12V/24V/220V 12V-60V
Temperature detect range: -50℃-110℃
Temperature control range:-50℃-110℃
Temperature accuracy:0.1℃
Measurement input:NTC10K waterproof L=1m
Output type :Output direct
Max capacity :Max 10A

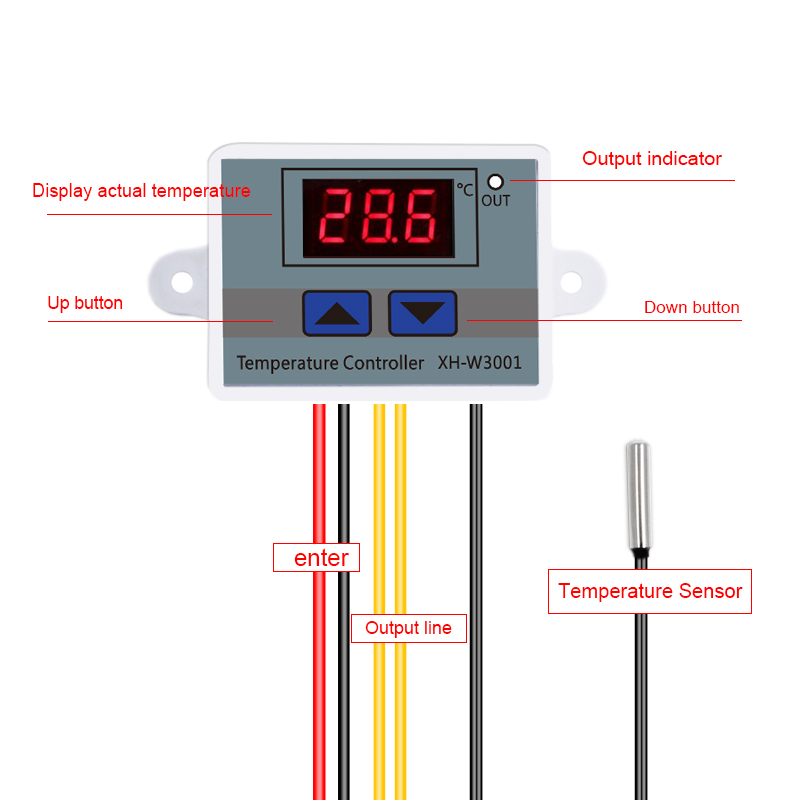

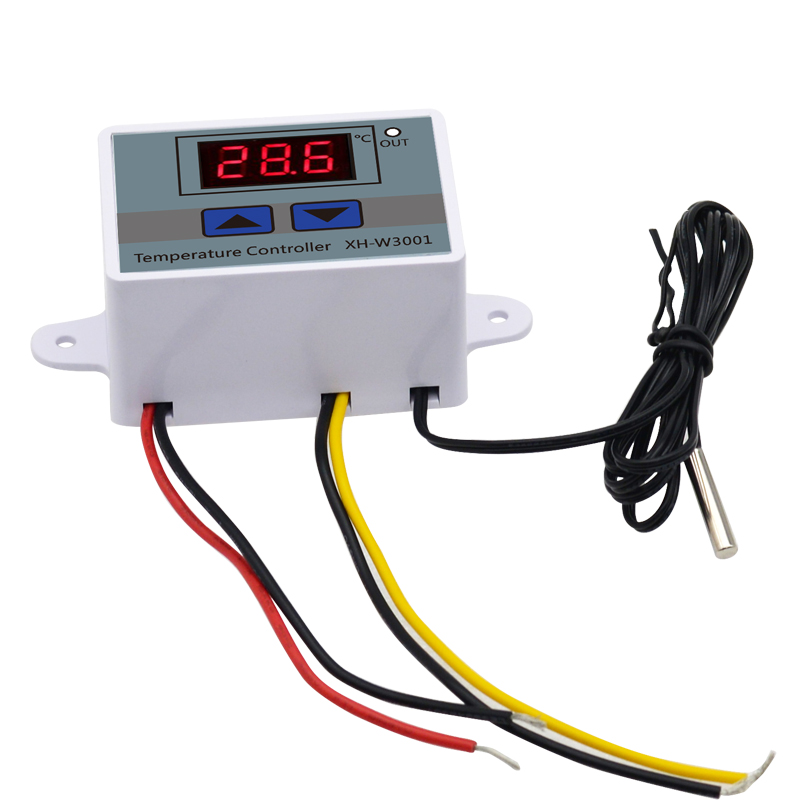

Panel description

Tip: The input voltage and output voltage of this thermostat are synchronized. In other words, when the thermostat is in working condition (the indicator light is on) On), the input voltage is equal to the output voltage. When the thermostat is in the power-off state (the indicator light is off), there is no voltage output at the output terminal. The indicator light is on to indicate that there is terminal output. When the indicator light is off, there is no output from the terminal.

Set start temperature Press the up keyboard to display the start-up temperature. Press the up keyboard for 3 seconds to start the temperature number flashing, and set the temperature value through the up and down keyboard. Set the stop temperature. Press the key to display the stop temperature, press the key to stop the temperature number flashing for 3 seconds.

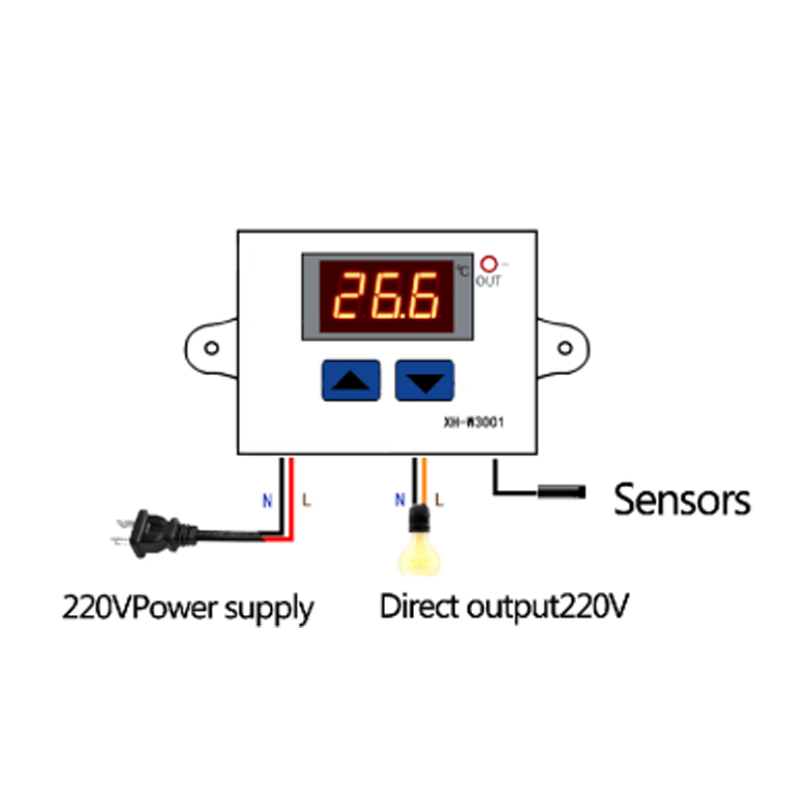

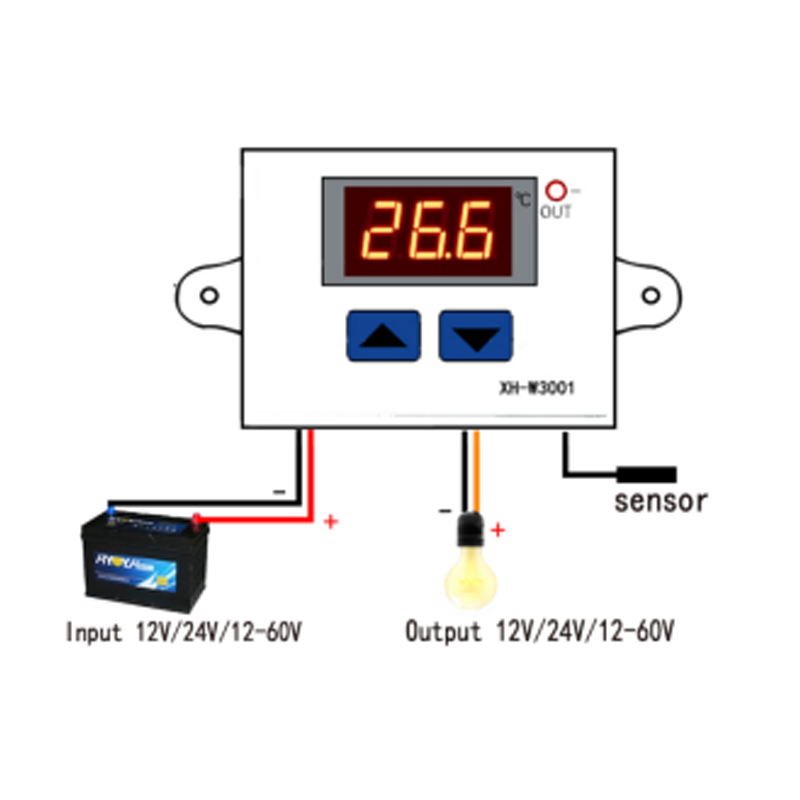

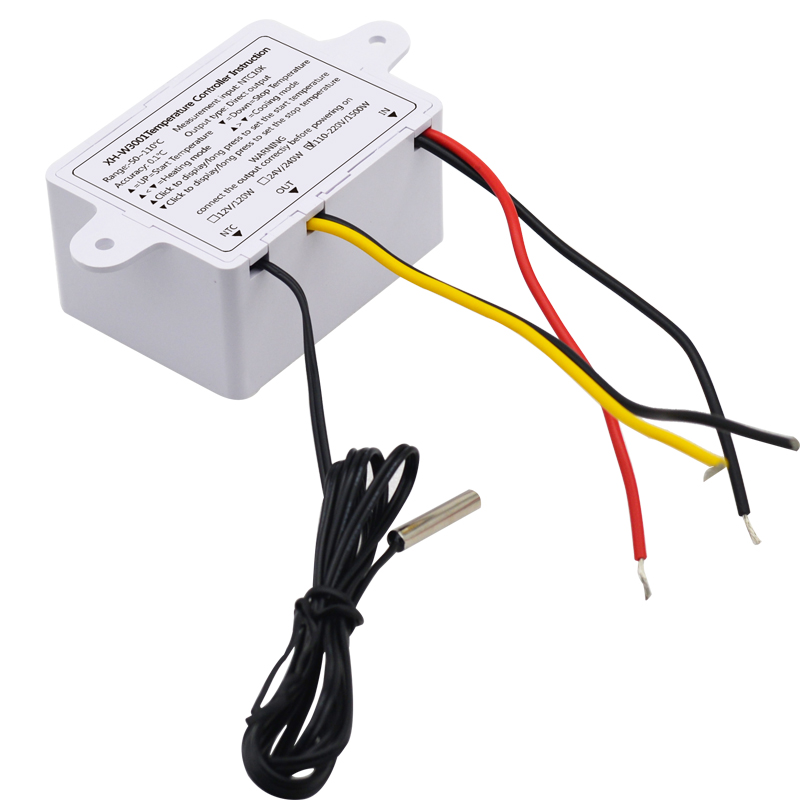

Product wiring

Use case: Control the water heater, stop heating at 65°C, and reheat after the temperature drops to 50°C. Set up the solution: STEP1: Make sure that the working mode is heating, and the starting temperature is lower than the stopping temperature STEP2: Press the up keyboard to start the temperature flashing, press the up and down keys to set the starting temperature to 50°C STEP3: Press the down-adjustment keyboard to stop the down-adjustment button. Use case: Control farm: The blower adjusts the temperature to 26°C, and starts refrigeration again when the temperature returns to 28°C. Setting method: STEP1: Ensure that the working mode is cooling, and the start temperature is greater than the stop temperature STEP2: Press the up keyboard to start the temperature flashing, press the up and down keys to set the starting temperature to 28°C STEP3: Press the keyboard to stop the temperature flashing, press the up and down keys to stop the temperature at 26 degrees, complete the setting.

Setting example

Scope of application
