DC12V Digital thermostat thermostat temperature regulator incubator relay LED 10A heating and cooling wholesale STC-3008

Product Description

STC-3008, is a dual-display, dual-control, high-precision temperature controller with delay protection, high and low temperature alarms and other functions

Front panel size: 75*34.5mm (length * width) Machine size: 75*34.5*85mm (length*width*thickness) Installation hole size: 71*29mm (length * width) Sensor cable length: 1 meter (including probe length) Technical parameter Temperature measurement range: -55℃~120℃ Temperature measurement accuracy: ±1℃ (-50℃~70℃) Power supply: 220VAC±10%, 50/60HZ Sensor: 1 NTC sensor Operating environment temperature: 0℃~60℃ Relative temperature: 20~85% (no frost) Temperature resolution: 0.1℃ Sensor failure delay: 1 minute The power consumption of the whole machine is less than 3W Relay output capacity: cooling (10A/250VAC), heating (10A/250VAC) Storage temperature: -30~75℃

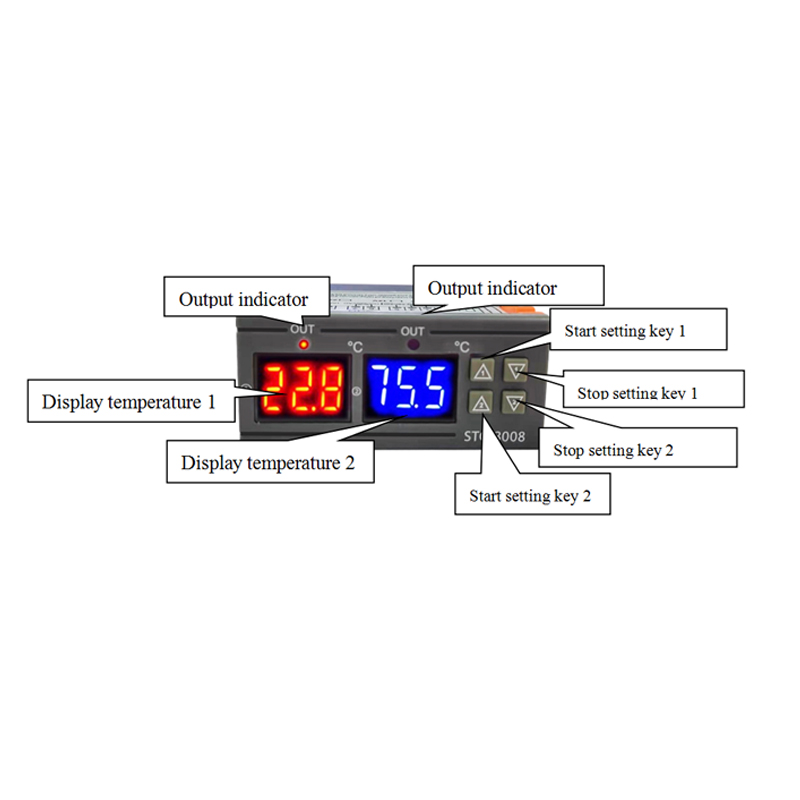

Panel description

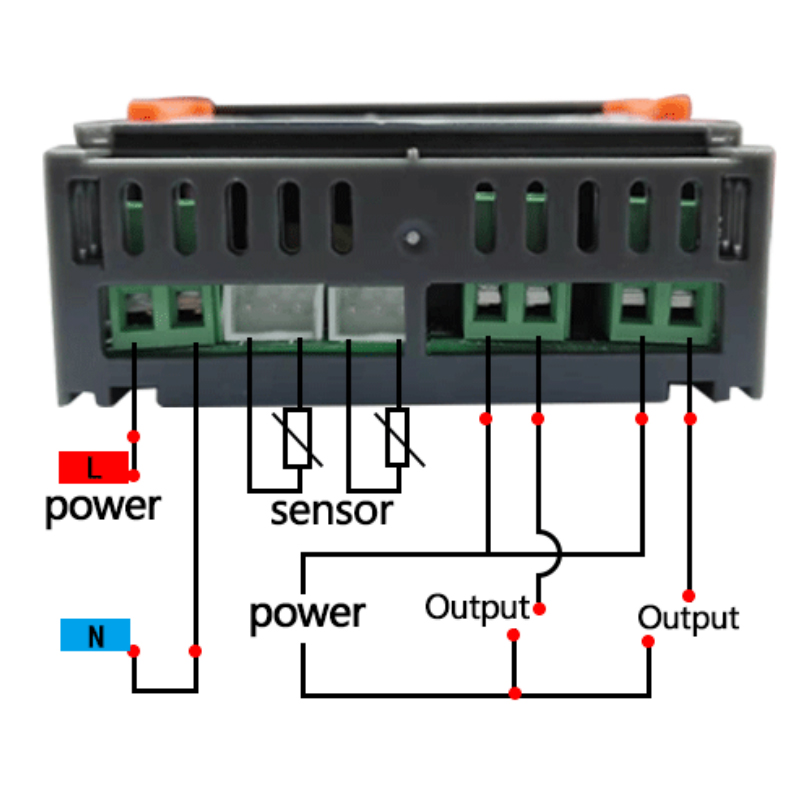

Independent load wiring diagram

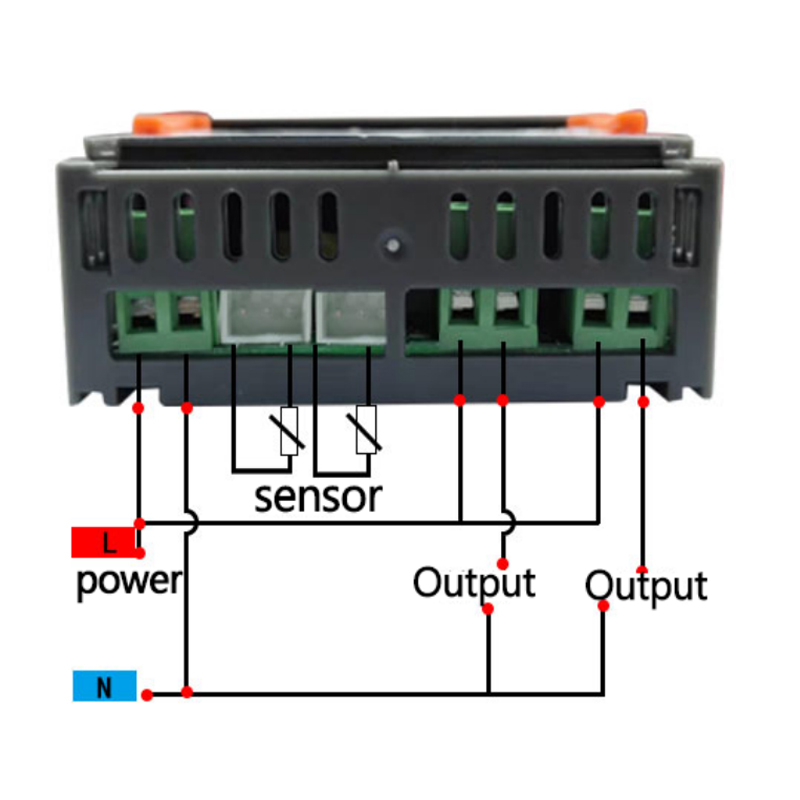

Same load wiring diagram

Start temperature> stop temperature = cooling mode
For example: it is required to start refrigeration above 50℃, and stop refrigeration below 45℃. How to set?
First (start temperature is greater than stop temperature, the default is cooling mode)
If it is to set the first set of temperature, press "up key 1" once to display the starting temperature, then press "up key 1" for
3 seconds to adjust the up and down keys to 50
Press the "Down Button 1" to display the stop temperature, and then press the "Down Button 1" button for 3 seconds to stop the
flashing of the temperature number. The required temperature can be adjusted to 45°C with the up and down buttons. Set up
