DC24V Digital thermostat thermostat temperature regulator incubator relay LED 10A heating and cooling wholesale STC-3000

Product Description

Stc-1000 microcomputer temperature controller Main function Refrigeration and heating automatic conversion mode, temperature control according to temperature setting and hysteresis, temperature correction, refrigeration control output protection delay, over-range and sensor failure alarm, with functions such as Celsius/Fahrenheit page switching.

Front panel size: 75*34.5mm (length * width) Machine size: 75*34.5*85mm (length*width*thickness) Installation hole size: 71*29mm (length * width) Sensor cable length: 1 meter (including probe length) Technical parameter Temperature measurement range: -50℃~99℃ Temperature measurement accuracy: ±1℃ (-50℃~70℃) Power supply: 220VAC±10%, 50/60HZ Sensor: 1 NTC sensor Operating environment temperature: 0℃~60℃ Relative temperature: 20~85% (no frost) Temperature resolution: 0.1℃ Sensor failure delay: 1 minute The power consumption of the whole machine is less than 3W Relay output capacity: cooling (10A/250VAC), heating (10A/250VAC) Storage temperature: -30~75℃

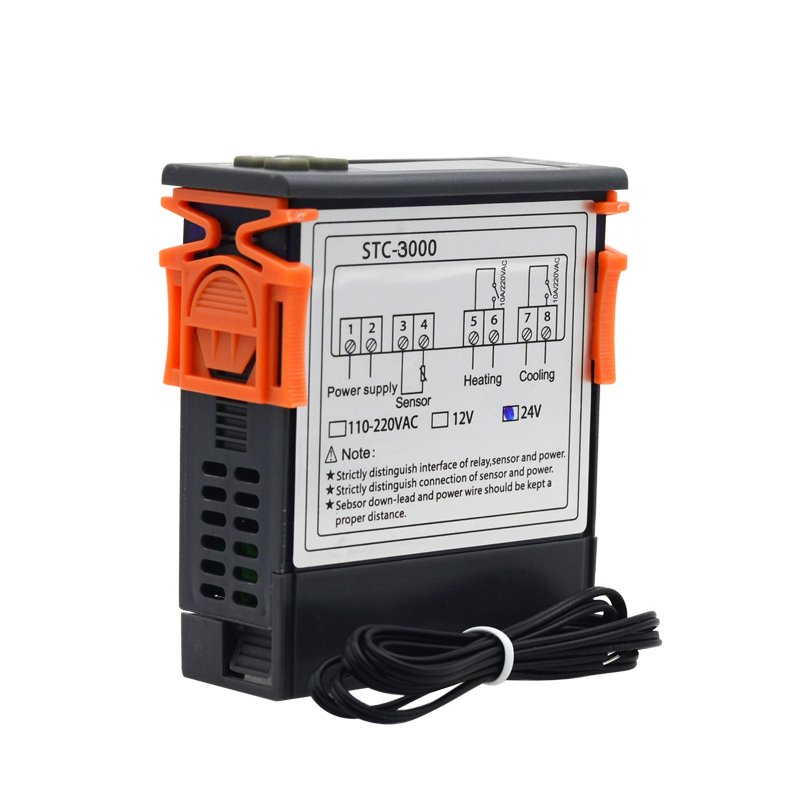

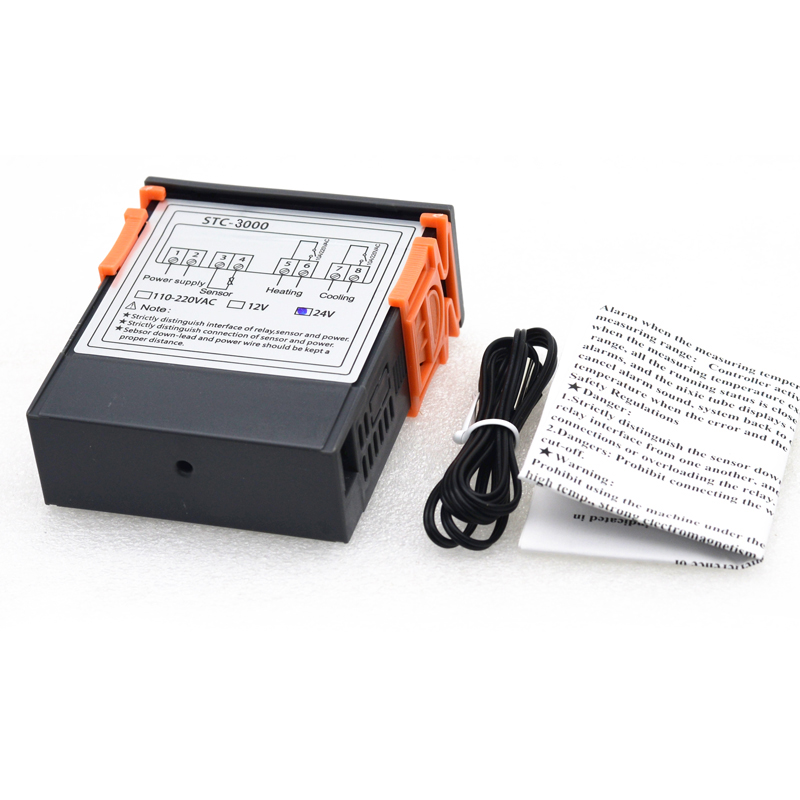

Product wiring

Operation instructions When the controller is working normally, press and hold the power button for more than 3 seconds to turn off the controller. When the controller is off, press and hold the power button for more than 3 seconds to turn on the controller. When the controller is normal, the digital tube displays the current temperature measurement value, and automatically recognizes and switches the cooling and heating working mode. When the measured temperature is greater than or equal to the set value of the temperature + the set value of the temperature difference, it enters the cooling state, the Cool indicator light is on, and the normally open contact of the refrigeration relay is closed: the Cool indicator flashes, indicating that the refrigeration equipment is in the compressor delay protection state; when the measured temperature ≤ For the temperature setting value, the Cool indicator light is off, and the normally open contact of the refrigeration relay is disconnected. When the measured temperature is less than or equal to the temperature setting value-the temperature difference setting value, it enters the heating state, the Heat indicator light is on, and the heating relay normally open contact is closed; when the measured temperature ≥ the temperature setting value, the Heat indicator and the heating relay normally open contact are broken Open.

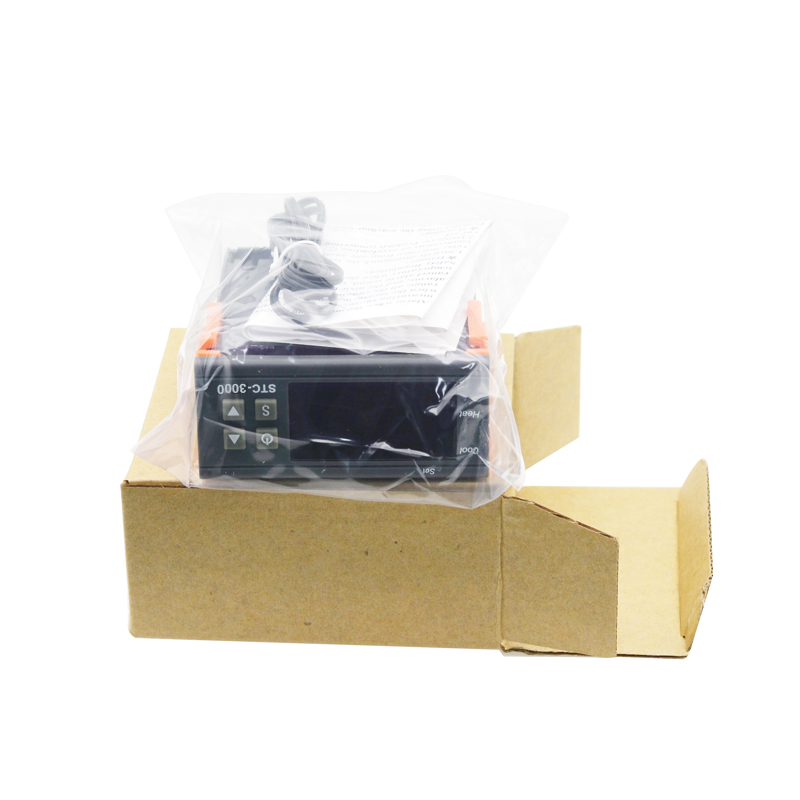

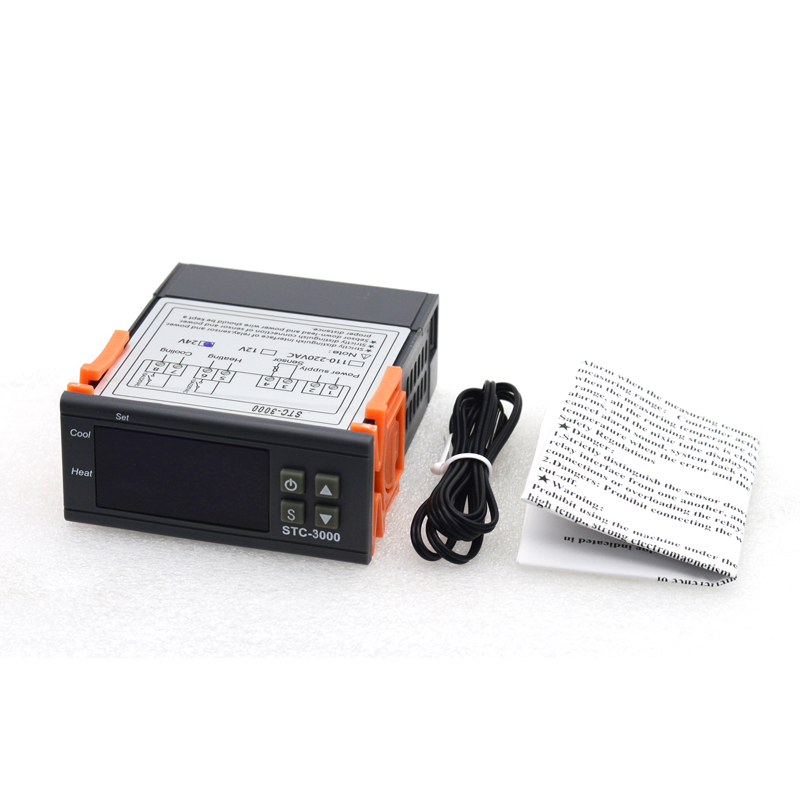

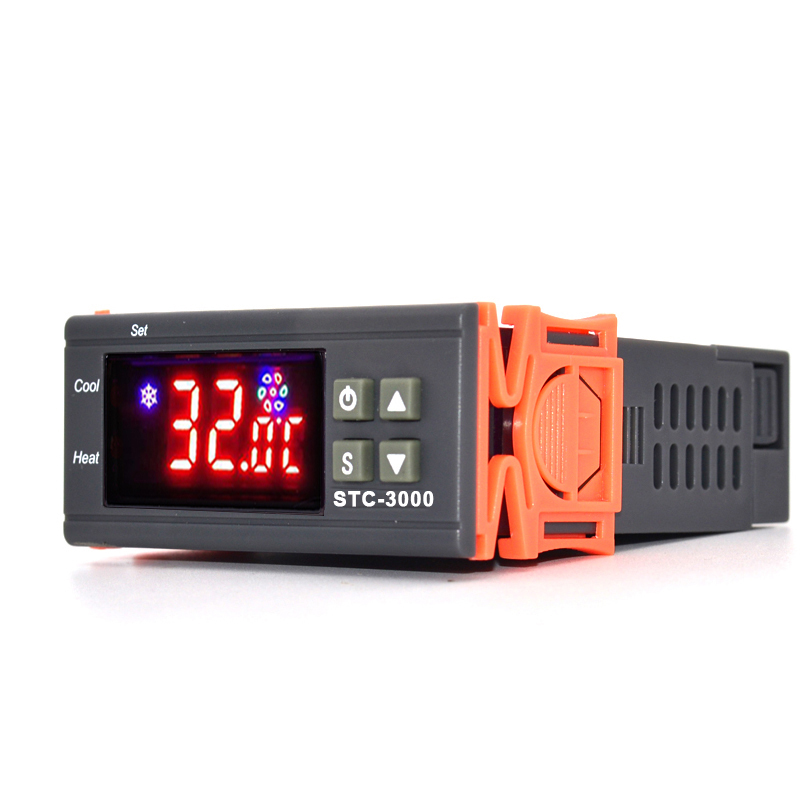

Products Show
